Spanish Abertis DTT Sat @ Hispasat 30W - Chat & How to guides

[roqui]

I confirm that the ALERTA channel is working

Can you give more clues to change in lamedb and astra.confi?

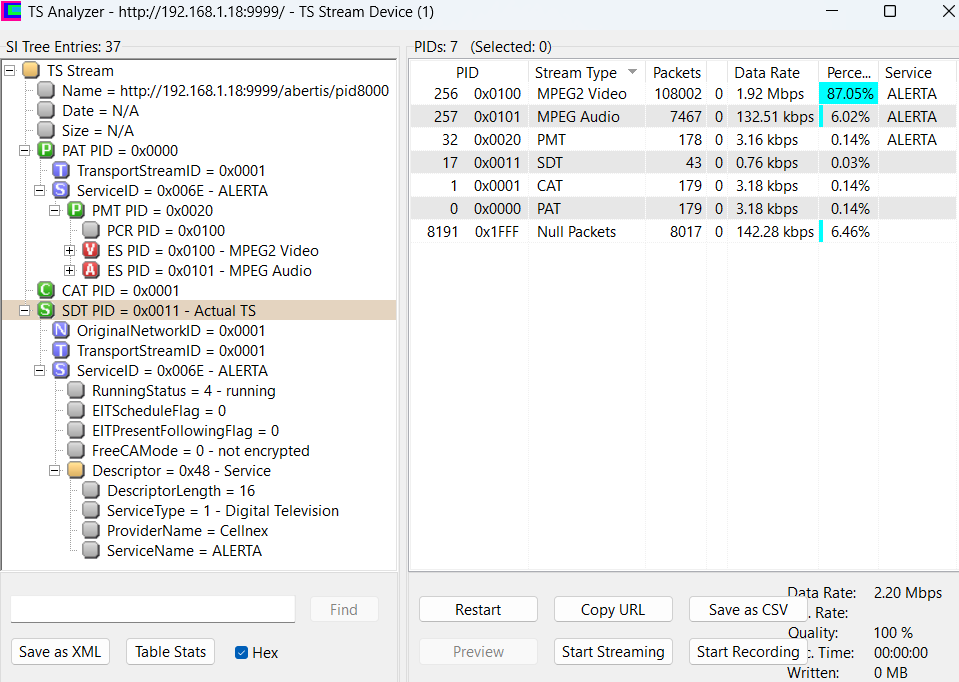

[Maxx@]

astra.conf

make_channel({
name = "Abertis PID 8000",
input = { "http://localhost:8001/1:0:1:3E8:EA61:0:CE4B17F:0:0:0:", },
transform = {{
format = "pipe",
command = "/etc/astra/scripts/abertis 8000", }},
output = { "http://0.0.0.0:9999/abertis/pid8000", },
})

userbouquet

#SERVICE 1:0:1:6E:317F:0:CE4B17F:0:0:0:http%3a//0.0.0.0%3a9999/abertis/pid8000:ALERTA
#DESCRIPTION ALERTA

lamedb

transponders
0ce4b17f:ea61:0000
    s 12671000:30000000:1:0:-300:2:0:1:2:3:2
/
end
services
03e8:0ce4b17f:ea61:0000:1:0
Abertis PID 8000
p:ABERTIS,c:151f40,C:2600,f:05
end



[EnoSat]

Provider Cellnex
NID-1
TID-1
SID-110



[Satmoik]

Is 110 the correct decimal SID? So far, no success with the sx88+ RX



[EnoSat]

For SX88, you enter the SID for the ABERTIS stream (HSA-68.0), not for the channel from the ABERTIS stream (ALERTA)



[Satmoik]

Excellent, Sid 1000 works.
So they are switching off SD in Feb. Presume the receiver shown is an H D ready set?with SD Rx becoming worthless
And looks like Abertis SD only channels wll then turn HD.



[EnoSat]



[Jose67]

Can anyone verify any of the following. ?

The TVE UHD 1 channel reproduces the content of La1 and the TVE UHD 2 channel reproduces
the content of Teledeporte. The transmission is carried out in DVB-T2 standard with
HEVC codec.
The test transmission will continue until February 7, 2024, date from which date
La1 will be broadcast regularly in Ultra High Definition (UHD-4K) but with
the DVB-T standard.
The broadcasts will be free-to-air in Ultra High Definition, with a better image,
sound and, therefore, better service, through the RGE2 multiplex.



[Jose67]

So, it will be just La 1 UHD transmitting on Abertis RGE2 multiplex from 7 February 2024.? Apart from the other SD to HD channel changes, due by 15 February 2024.



[Stevenvc19]

Latest Update provides better news!
Aprovechando que el sistema de compresión MPEG4/H264 es el mismo utilizado para las emisiones realizadas en UHD o 4K, el Gobierno da un paso adelante y autoriza a RTVE a emitir 2 canales simulcast de sus canales en HD, así como al grupo Atresmedia y al grupo Mediaset a emitir dos canales UHD cada uno.

De esta forma, RTVE emitirá los canales La1 UHD y Teledeporte UHD. En el caso de Atresmedia, los canales serán Antena 3 UHD y laSexta UHD, y Mediaset emitirá Telecinco UHD y Cuatro UHD. Estos canales emitirán de forma simultanea a las versiones en Alta Definición.

so the RGE 2 multiplex will be in MPEG4/H264 And will contain 6 UHD channels! That is incredible news!
source “mundoplus.tv”



[emimd]

Latest Update provides better news!
Aprovechando que el sistema de compresión MPEG4/H264 es el mismo utilizado para las emisiones realizadas en UHD o 4K, el Gobierno da un paso adelante y autoriza a RTVE a emitir 2 canales simulcast de sus canales en HD, así como al grupo Atresmedia y al grupo Mediaset a emitir dos canales UHD cada uno.

De esta forma, RTVE emitirá los canales La1 UHD y Teledeporte UHD. En el caso de Atresmedia, los canales serán Antena 3 UHD y laSexta UHD, y Mediaset emitirá Telecinco UHD y Cuatro UHD. Estos canales emitirán de forma simultanea a las versiones en Alta Definición.

so the RGE 2 multiplex will be in MPEG4/H264 And will contain 6 UHD channels! That is incredible news!
source “mundoplus.tv”

That's was an April fools joke that in Spain it is celebrated on December 28th



[dvlajkovic]

That's was an April fools joke that in Spain it is celebrated on December 28th

inocentada
Gotta admit... it looks too good to be true



[Oskar3]

In Hispasat they did not even implement D+ channels in HD, now in Astra there are fewer and fewer channels and above all it seems that they have a weakness for SD. They’re not interested in the satellite.



[EnoSat]

saving capacity



[Oskar3]

If it is only to save you to broadcast on SAT , definitely instead of offering most channels in SD. Unless they want to keep saving themselves subscribers.



[pipino]

inocentada
Gotta admit... it looks too good to be true

It's all bull ***t mundoplus is not a reliable source iv checked the BOE and nothing is mentioned about it _hXXps://www.boe.es/boe/dias/2023/12/28/pdfs/BOE-S-2023-310.pdf



[Ramboide]

The 24h HEVC channel exists, along with La 1 HEVC and La 2 HEVC. I discovered it a while ago by analyzing PID 2060.
In userbouquet:

#SERVICE 1:0:1:1:2BD6:80C:0:0:0:0:http%3a//0.0.0.0%3a9999/abertis/pid2060:24h HD HEVC [2060]
#DESCRIPTION 24h HD HEVC [2060]



[EnoSat]

yes, long time in HEVC



[Ramboide]

ALERTA channel works well for me, thanks to all the people who made it possible. I have configured this channel with its parameters the same as the other channels and it works fine for me.

I'm surprised that La 1 UHD isn't in Hispasat, but it might be before February 14, if not already but it's hidden. It is supposed to be in RGE 2.



[Stevenvc19]

ALERTA channel works well for me, thanks to all the people who made it possible. I have configured this channel with its parameters the same as the other channels and it works fine for me.

I'm surprised that La 1 UHD isn't in Hispasat, but it might be before February 14, if not already but it's hidden. It is supposed to be in RGE 2.

It probably becomes available via Hispasat on February 7, that is the official launch of La 1 UHD y tdp UHD.
