Is the Inverto Black Ultra lnb the gold standard for Ku Band?
Satellite Dish size guide for UK & Europe
- Thread starter william-1
- Start date
manic01
Super VIP
- Messages
- 3,213
Opinions vary, I got rid of mine and put a smart back on.
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
Not even close. You want the absolute best then use a prime focus dish and Norsat
1000 Ku-Band Quad Band PLL LNB
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the...
www.norsat.com
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
Assume you want KU and not C band?
If you want reliable reception throughout winter a 1.2m dish so that's about a 4 ft dish. You can use smaller but can lose reception in poor weather.
Why not look at the footprint. https://absatellite.com/satellite-fleet/abs-3a
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
They come with a special mount so you can have V & H and yes we use them in broadcasting. Price is not a typo. These lnb's are often worth the difference between a 1.2 and a 1.8m using regular KY lnb's as they have better gain. I haven't worked out to upload pictures to this site otherwise would show you LNB's like this on a prime focus KU band setup.
- Messages
- 26,042
for your 3 meter or 5 meter dish that someone recently stole from you...or what we talking about here ??
It is a WR75 flange LNB that fits onto a WR75 OMT or WR75 single port waveguide.
It depends on what feed assembly was provided by the manufacturer with the dish as to whether that LNB type will fit.

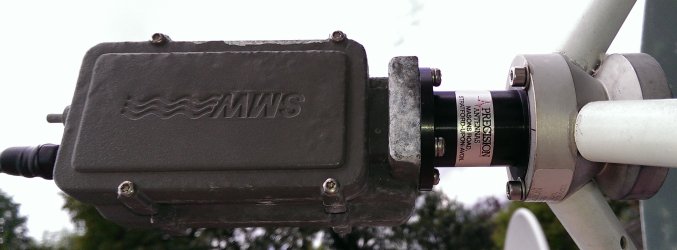

I have attached a couple of pictures below that illustrate how this type of LNB can be fitted to a Prime Focus dish.

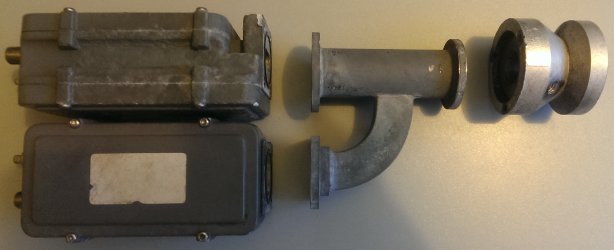

In the 2nd picture below, the dish with the single SMW LNB was a Precision Amtennas 2.0m Prime Focus dish.
- Messages
- 26,042
i see the LNB Itself does not help the rest of the parts are required and are designed for a particular type of 2 meter dish and holder mine is much different than the pictures and my dish arms are much lighter than the picture #2 also ...it is very expensive however more than €1K Euro for only LNB ....
probably another €1K Eur for the other parts required , lol's
probably another €1K Eur for the other parts required , lol's
The other parts in the pictures were shipped with the dish by the manufacturer as part of the package when new.
The design was applicable across the range for all Precision Antennas dishes ranging from 90cm to 4.5m.
It is broadcast grade equipment as used by BBC, SKY UK etc, they do not have budget restrictions in this type of price range.
Most commercial installations use these type of LNB's for Ku-Band, manufacturers include Japan Radio, Norsat, Swedish Microwave and XMW.
The C120 LNB's and 40mm collar LNBF's are those found on most hobby satellite setups.
In tests, I have found that an Invacom C120 dual output and quad output perform as well in terms of signal level (SNR dB) as the more expensive WR75 flange LNB's.
For most hobby satellite setups it is a no brainer, fit the C120 LNB or the 40mm collar LNBF and throw it away and buy a new one if it goes wrong.
Broadcasters prefer long term reliability as well as performance so go for the WR75 type of LNB such as the Norsat presented above by @BLACKCRUSADER
There is a global market among broadcasters for the WR75 flange type of LNB, if there were not, the suppliers would be out of business.
Last edited:
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
I use that twin LNB setup on my 124e and 128e KU band 3m dishes for the Sky Perfect satellite. Also Japan uses a special 0/22khz switch setup so you cannot use a normal multiswitch.
I use Norsat 11300 lnb. As I live in a country where Typhoons hit not losing signals is quite important.
I use Norsat 11300 lnb. As I live in a country where Typhoons hit not losing signals is quite important.
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
You can see the twin KU band setup on the 3m dish pointing to the left at 124E
Last edited:
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
Yes, easy to see the pair of WR75 LNB's on the orthomode.
What have you got the H & V outputs connected to at the other end, is it a "2 In - n Out" multiswitch?
I have had decent results with a Spaun SMS 281 F multiswitch, H & V in and 8 outputs.
The SNR dB level on the multiswitch outputs is only very marginally reduced by fractions of a dB compared to direct from the LNB's themselves.
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
There are two dishes for Sky Perfect Japan 124e and 128e at my place they are 3m Prodeline dishes.
The cables first go to splitters which then go to special MS 34 input. The output then go to Pulse control Switch. So one feed is 124E H & V the other feed is 128 H & V
You cannot use a normal multi switch because Japan uses a different system. RX out to each STB.
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
I have several 2.4m 3m and 4.2m dishes on my platform Cband and the two Ku Band 124e & 128e
Cband use 5g LNB and Norsat band pass filters. Asiasat5 100.5e and Thaicome 78.5e both use 4.2m dishes.
Other satellites use 2.4m solid cband dishes.
Cband use 5g LNB and Norsat band pass filters. Asiasat5 100.5e and Thaicome 78.5e both use 4.2m dishes.
Other satellites use 2.4m solid cband dishes.
BLACKCRUSADER
Well Known Member
- Messages
- 2,104
I use powered multiswitches and yes there is no drop really from LNB direct. 8 in 16 out.
Signal levels matter lol
Signal levels matter lol
Last edited:
Can I help myself with configuring dvbdream using multiswitch? I have a LNB QUAD, and with the multiswitch I have 8 outputs. But what happens is that many times the dvb crashes, I have to restart the dvb.I use powered multiswitches and yes there is no drop really from LNB direct. 8 in 16 out.
