Not found c8 in hvec feeds

K

klickklack

Senior Member
Messages
1,101
but exist this on America-Beam ?

C

cayoenrique

Member
Messages
475
1rst of all., I want to THANK YOU All for the logs provided.
For some time I wanted to look at new logs, but as I lost my equipment have not had chance to spent some time on it.

Now for the record and correctness the last arse post have no H.265 Video, instead are H.264.

And for the record here specs for H.265
Code:
https://www.itu.int/rec/T-REC-H.265-202108-S/en

K

klickklack

Senior Member
Messages
1,101
Here 4 clarification on HEVC/h.265/4:2:2/S2X16APSK
7.0E_11018,734_H_17145_(2023-11-08 22.54.50)_dump_decrypted
mega.nz

1009.12 MB file on MEGA

mega.nz mega.nz
7.0E_11018,734_H_17145_(2023-11-08 22.54.50)_dump
mega.nz

1009.13 MB file on MEGA

mega.nz mega.nz

Allgemein
ID : 160 (0xA0)
Vollständiger Name : C:\!Records\7.0E_11018,734_H_17145_(2023-11-08 22.54.50)_dump_decrypted.ts
Format : MPEG-TS
Dateigröße : 1 009 MiB
Dauer : 3 min 44s
Modus der Gesamtbitrate : variabel
Gesamte Bitrate : 37,6 Mb/s

Video
ID : 512 (0x200)
Menü-ID : 1 (0x1)
Format : HEVC
Format/Info : High Efficiency Video Coding
Format-Profil : Format [email protected]@Main
Codec-ID : 36
Dauer : 16 h 24 min
Bitrate : 34,7 Mb/s
Breite : 3 840 Pixel
Höhe : 2 160 Pixel
Bildseitenverhältnis : 16:9
Bildwiederholungsrate : 50,000 FPS
Standard : Component
ColorSpace : YUV
ChromaSubsampling/String : 4:2:2 (Type 2)
BitDepth/String : 10 bits
Bits/(Pixel*Frame) : 0.084
Stream-Größe : 239 GiB
colour_range : Limited
colour_primaries : BT.709
transfer_characteristics : BT.709
matrix_coefficients : BT.709

Audio #1
ID : 4112 (0x1010)
Menü-ID : 1 (0x1)
Format : MPEG Audio
Format-Version : Version 1
Format-Profil : Layer 2
Format-Einstellungen : Dual mono
Codec-ID : 3
Dauer : 3 min 44s
Bitraten-Modus : konstant
Bitrate : 384 kb/s
Kanäle : 2 Kanäle
Samplingrate : 48,0 kHz
Bildwiederholungsrate : 41,667 FPS (1152 SPF)
Video Verzögerung : -990 ms
Stream-Größe : 10,3 MiB (1%)

Audio #2
ID : 4128 (0x1020)
Menü-ID : 1 (0x1)
Format : MPEG Audio
Format-Version : Version 1
Format-Profil : Layer 2
Format-Einstellungen : Dual mono
Codec-ID : 3
Dauer : 3 min 44s
Bitraten-Modus : konstant
Bitrate : 384 kb/s
Kanäle : 2 Kanäle
Samplingrate : 48,0 kHz
Bildwiederholungsrate : 41,667 FPS (1152 SPF)
Video Verzögerung : -990 ms
Stream-Größe : 10,3 MiB (1%)

Audio #3
ID : 4160 (0x1040)
Menü-ID : 1 (0x1)
Format : MPEG Audio
Format-Version : Version 1
Format-Profil : Layer 2
Format-Einstellungen : Dual mono
Codec-ID : 3
Dauer : 3 min 44s
Bitraten-Modus : konstant
Bitrate : 256 kb/s
Kanäle : 2 Kanäle
Samplingrate : 48,0 kHz
Bildwiederholungsrate : 41,667 FPS (1152 SPF)
Video Verzögerung : -966 ms
Stream-Größe : 6,86 MiB (1%)

Menü
ID : 256 (0x100)
Menü-ID : 1 (0x1)
Dauer : 3 min 44s
Liste : 512 (0x200) (HEVC) / 4112 (0x1010) (MPEG Audio) / 4128 (0x1020) (MPEG Audio) / 4160 (0x1040) (MPEG Audio)
Service-Name : DECBC UHD1
Service-Anbieter : EBUER
Service-Typ : digital television

C

cayoenrique

Member
Messages
475
Interesting things in 7.0E_11102,296_H_14402_(2023-10-28 15.34.32)_dump-#CW--3E CA 23 2B 64 CB 27 56.ts

Audio/Video Pids ( 0x200, 0x1010,0x1020,0x1030 & 0x1040 ) are normally pids associated with a Tandberg transition. Yes I know Biss 0x2600 is in use. It is just a note,
NALU Headers are 4 byte long. So no 00 00 01 instead we have 00 00 00 01.
Many of the Video Pids have the TP flag in TS Header. TP as in Transport Priority. So you see in TS Header 47 22 00 instead of normal 47 02 00.
The Filler NALU appears here as: 00 00 00 01 0C FF... contrast with h.265 that we saw 00 00 01 4C 03 FF...

S

sattechtips

Registered
Messages
426
C

C0der

Registered
Messages
269
Thanks.
It seems there are realy simply no usefull C8 in there. O.k., thats not completely new, but it's interesting to look at some "real life" examples.
There is likely nothing we can do, I think.

@klickklack
Are you saying that Arse-feed had usefull C8? Do you have a file?

M

moonbase

VIP
Donating Member
Messages
543
C0der said:
@klickklack
Are you saying that Arse-feed had usefull C8? Do you have a file?
Click to expand...


That is how I read the reply from @klickklack that the original feed had a Crypt8 very early after the feed commenced for a short duration that was then removed.
If we knew the date and ID of the feed it might be possible to find a post on the forum listing the Crypt8 and CW.

Last edited:
S

sattechtips

Registered
Messages
426
The feed is from 2020-12-20, for game everton - arsenal 12-19.
If was posted here CW i will not say i not have CW, only way to find cw was biss au box or brute force, but no one do it. You can get crypt8 from CW, where you find.

I have record almost all 37 games and not all feed give c8 at begining, need only brute force. I have whole file 30+ gb and can't find good c8.

C

cayoenrique

Member
Messages
475
@Ferret

As always we will follow any rule.

I write because I do not know if are indirectly request to us to follow new rule.

Does this mean that for the future, we keep posting comments here in this thread or from any other thread where we analyze a stream.

But force to place the dumpfiles and keys here?

Please advise.

Note: I little more work but more clean, as all the logs will be in one place.

M

moonbase

VIP
Donating Member
Messages
543
sattechtips said:
The feed is from 2020-12-20, for game everton - arsenal 12-19.
If was posted here CW i will not say i not have CW, only way to find cw was biss au box or brute force, but no one do it. You can get crypt8 from CW, where you find.

I have record almost all 37 games and not all feed give c8 at begining, need only brute force. I have whole file 30+ gb and can't find good c8.
Click to expand...

If you upload any more ts file recordings would you please be able to provide the date, satellite and frequency?

K

klickklack

Senior Member
Messages
1,101

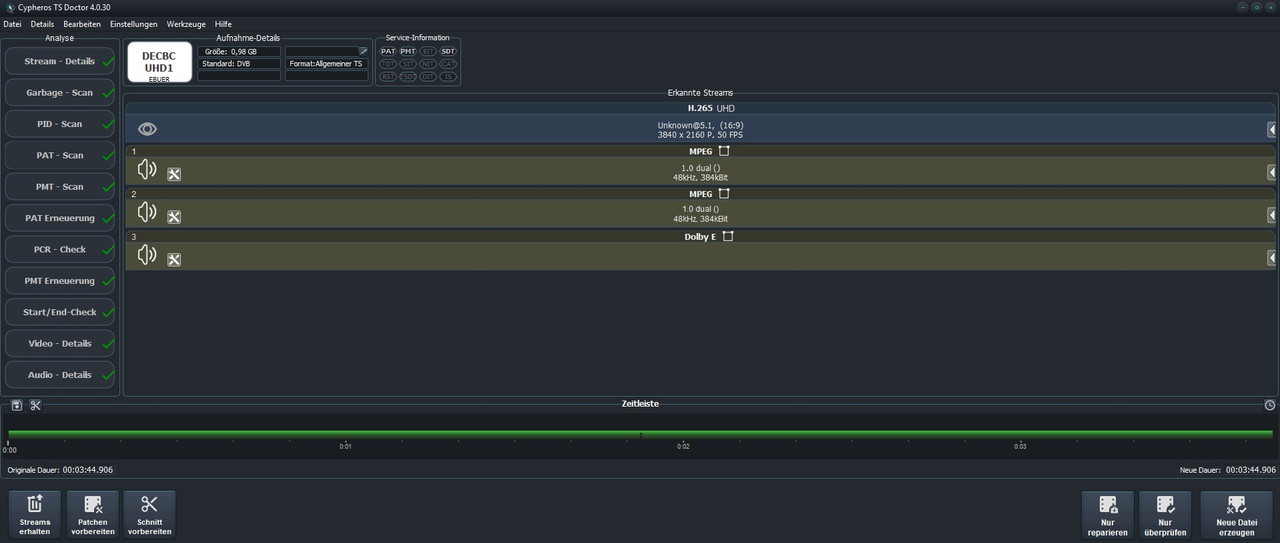

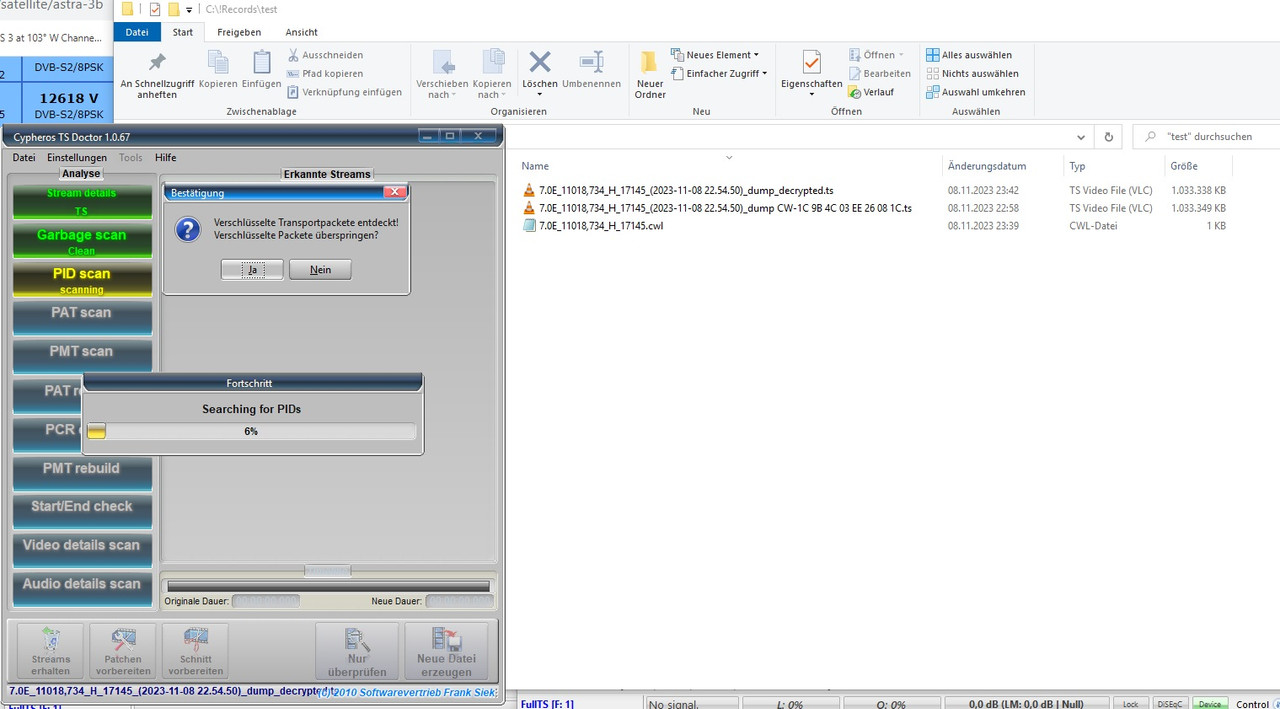

my one decrypted and after that i use the decrypted for input TS-Doctor
then this i see . Is there any packets inside there cant decrypt with the key ?



Opening file C:\!Records\test\7.0E_11018,734_H_17145_(2023-11-08 22.54.50)_dump_decrypted.ts

OS: Windows Future Windows version (unknown)
TSDoctor.exe V 1.0.67

Supported splitter filter found : Haali
Supported audio filter found : ffdshow
Supported video filter found : ffdshow,CoreAVC
File size: 1058137884
Packets : 5628393


Scanning for TRP fill pakets

Scanning for PIDs
Scrambled pakets detected!
Ignore transport_scrambling_control!

Found 7 different PIDs

Identifying stream types

$1020: 1% = (PES_StreamID $C1 = Audio_Stream_1) [PTS][PESLength]
$1040: 1% = MPEG1 Audio (PES_StreamID $C3 = Audio_Stream_3) [PTS][PESLength]
$0200: 97% = H264 Video (PES_StreamID $E0 = Video_Stream_0) [PCR,PTS,DTS]
$1010: 1% = (PES_StreamID $C0 = Audio_Stream_0) [PTS][PESLength]
$0000: 0% = PAT
$0100: 0% = PMT
$0011: 0% = SDT,BAT,ST


Scanning for PATs

----------- PAT 0 -----------
PacketCount : 1
Table ID : 0
Section Syntax Indicator : 1
Reserved Bit 0 : 0
Reserved Bit 1 : 1
Reserved Bit 2 : 1
Pointer Field : 0
Section Length : 13
Transport Stream ID : 160
Reserved Bit 3 : 1
Reserved Bit 4 : 1
Version Number : 0
Current Next Indicator : 1
Section Number : 0
Last Section Number : 0

Program Number : $0001
Map PID : $0100

CRC32 : $952885A5 = $952885A5
-----------------------------

Found 1 different PATs
Found 1 different PMT PIDs
Scanning for PMTs

----------- PMT 0 -----------
Packet : $0000048B
PacketCount : 1
PID : $0100
Table ID : 2
Section Syntax Indicator : 1
PMT Size : 91
Pointer Field : 0
Section Length : 83
Program Number : $0001
Version Number : 2
Current Next Indicator : 1
Section Number : 0
Last Section Number : 0
PCR PID : $0200

Program Info Length : 6
Program Info : $09, $04, $26, $00, $FF, $FF

Stream Type : 36
Description : User private
Elementary PID : $0200
ES Info Length : 21
ES Info : $52, $01, $00, $C8, $01, $1C, $38, $0D, $04, $00, $00, $00, $01, $9D, $08, $00, $00, $00, $00, $99, $1C
ES Info Text : R__È__8___________™_

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1010
ES Info Length : 3
ES Info : $52, $01, $10
ES Info Text : R__

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1020
ES Info Length : 3
ES Info : $52, $01, $11
ES Info Text : R__

Stream Type : 6
Description : ITU-T Rec. H.222.0 | ISO/IEC 13818-1 PES packets containing private data
Elementary PID : $1030
ES Info Length : 9
ES Info : $52, $01, $12, $05, $04, $42, $53, $53, $44
ES Info Text : R____BSSD

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1040
ES Info Length : 3
ES Info : $52, $01, $13
ES Info Text : R__

CRC32 : $D977FE89 = $D977FE89
-----------------------------

Found 1 different PMTs

Selecting PMT with PID $0100 at position $0000048B
CRC OK!

No video stream in PMT!
Starting video stream search!
Video stream found: PID $0200
Patched PMT entry for $0200 to stream type 27: AVC video stream as defined in ITU-T Rec. H.264 | ISO/IEC 14496-10 Video

Deleting PMT entry: PID $1030 type 6 = ITU-T Rec. H.222.0 | ISO/IEC 13818-1 PES packets containing private data
1 entries deleted from stream list (not found in stream)!

0.
stream_type : 27 = AVC video stream as defined in ITU-T Rec. H.264 | ISO/IEC 14496-10 Video
elementary_pid : $0200
ES_info_length : 21

1.
stream_type : 3 = ISO/IEC 11172 Audio
elementary_pid : $1010
ES_info_length : 3

2.
stream_type : 3 = ISO/IEC 11172 Audio
elementary_pid : $1020
ES_info_length : 3

3.
stream_type : 3 = ISO/IEC 11172 Audio
elementary_pid : $1040
ES_info_length : 3

PCR PID is $0200

Created PAT:

----------- PAT 0 -----------
PacketCount : 0
Table ID : 0
Section Syntax Indicator : 1
Reserved Bit 0 : 0
Reserved Bit 1 : 1
Reserved Bit 2 : 1
Pointer Field : 0
Section Length : 13
Transport Stream ID : 160
Reserved Bit 3 : 1
Reserved Bit 4 : 1
Version Number : 0
Current Next Indicator : 1
Section Number : 0
Last Section Number : 0

Program Number : $0001
Map PID : $0100

CRC32 : $952885A5 = $952885A5
-----------------------------



Created PMT:

----------- PMT 0 -----------
Packet : $0000048B
PacketCount : 1
PID : $0100
Table ID : 2
Section Syntax Indicator : 1
PMT Size : 91
Pointer Field : 0
Section Length : 69
Program Number : $0001
Version Number : 2
Current Next Indicator : 1
Section Number : 0
Last Section Number : 0
PCR PID : $0200

Program Info Length : 6
Program Info : $09, $04, $26, $00, $FF, $FF

Stream Type : 27
Description : AVC video stream as defined in ITU-T Rec. H.264 | ISO/IEC 14496-10 Video
Elementary PID : $0200
ES Info Length : 21
ES Info : $52, $01, $00, $C8, $01, $1C, $38, $0D, $04, $00, $00, $00, $01, $9D, $08, $00, $00, $00, $00, $99, $1C
ES Info Text : R__È__8___________™_

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1010
ES Info Length : 3
ES Info : $52, $01, $10
ES Info Text : R__

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1020
ES Info Length : 3
ES Info : $52, $01, $11
ES Info Text : R__

Stream Type : 3
Description : ISO/IEC 11172 Audio
Elementary PID : $1040
ES Info Length : 3
ES Info : $52, $01, $13
ES Info Text : R__

CRC32 : $012E1B4C = $012E1B4C
-----------------------------


First video PTS is 5295504537 16:20:38.939
Last video PTS is 5315732937 16:24:23.699

First PCR is 1588621968000 16:20:37.851
Last PCR is 1594694437575 16:24:22.757
Duration of video stream is 20241565 00:03:44.906
Video PCR to PTS difference 0 ms
$1010: Delay to video stream = -1142ms
$1020: Delay to video stream = -1142ms
$1040: Delay to video stream = -1094ms


The following PIDs will be imported into new stream: $0200, $1010, $1020, $1040

Scanning for video details
Video format: Could not detect video header details

Scanning for audio details
Audio stream 1:
Audio stream 2:
Audio stream 3: MPEG1 Audio

Cut in at PCR: 00:00:00.000 (16:20:37.851)
Cut out at PCR: 00:03:44.906 (16:24:22.757)

Starting at paket $00000000(00000000) PCR: 00:00:00.000 (16:20:37.851)
No cutting at the end needed
TS WARNING: For PID 0200 $0052EC5B: Paket discontinuity 7,2
TS WARNING: For PID 0200 $0052EC5E: Paket discontinuity 3,1
TS WARNING: For PID 1010 $0052ECB1: Paket discontinuity 12,14
TS WARNING: For PID 1020 $0052ECB2: Paket discontinuity 12,14
PES ERROR: For PID 1010 00:03:36.154 PES paket $0000235A is invalid (SizeMismatch), starting with TS paket $0052EBE9 Size: 976 should be 1160
PES ERROR: For PID 1020 00:03:36.154 PES paket $0000235A is invalid (SizeMismatch), starting with TS paket $0052EBEA Size: 976 should be 1160

--------- NAL Unit Type Statistic ---------
Slices : 0
I-Slices : 0
P-Slices : 0
B-Slices : 0
SP-Slices : 0
SI-Slices : 0
Data Partition A : 5092
Data Partition B : 0
Data Partition A : 16156
IDR Picture : 0
SEI : 11240
Sequence Parameter Set : 0
Picture Parameter Set : 0
AUD : 0
End of Sequence : 176
End of Stream : 0
Filler : 0
Slices : 0
Seq. Param. Set Ext. : 12648


Cutted pakets at the beginning: 0
Cutted pakets at the end: 0
Discarded pakets (not needed): 5131
Scrambled pakets : 428

ERRORS : 2
WARNINGS : 4

Speed: 64,5 MBytes/sec
Duration: 00:00:15

K

klickklack

Senior Member
Messages
1,101
C0der said:
tsdec should decrypt all packets.
Did you give it both even and odd key?

Also strange that the decrypted file is smaler. I'd expect it to be exactly the same size.
Click to expand...
i allways put in odd and even key.
maybe only old prog.
like this
00 EA CC 41 F7 11 3A EE 39
01 EA CC 41 F7 11 3A EE 39

K

klickklack

Senior Member
Messages
1,101
here you see Provider sends 2 Arts of Crypt8:
CW: E6 1A 3E 3E 73 24 56 ED

Crypt8-B8hx00h: 15 22 C8 63 56 BD 63 1E
Crypt8-B0hx00h: 14 2A DF C5 F4 A6 F3 32
Crypt8-A8hx00h: 37 02 C3 1C 1E 3F 3C 31
Crypt8-A0hx00h: E5 CC 9E 8E 67 DA 4B 94
Crypt8-98hx00h: 52 20 03 38 85 14 49 11
Crypt8-90hx00h: 19 12 A9 99 7F 9F 4A C0
Crypt8-88hx00h: 45 F1 AF F6 A3 E9 F7 E8
Crypt8-80hx00h: 6E EA 62 55 CF 4D D3 1A
Crypt8-78hx00h: EE 05 8C 89 04 26 49 0A
Crypt8-70hx00h: DF 54 FF 27 C6 DB 46 FD
Crypt8-68hx00h: A8 82 D5 F8 60 EA FA 9E
Crypt8-60hx00h: A5 A0 9F 9E 06 13 71 03
Crypt8-58hx00h: 0A D3 0C 58 EB D7 3D 3C
Crypt8-50hx00h: C2 2F 2F 3C 3E 21 59 28
Crypt8-48hx00h: 97 42 C8 4E A9 C8 8B EA
Crypt8-40hx00h: 4B 5C 89 84 03 06 EA 14
Crypt8-38hx00h: 10 D8 A4 BB ED 45 3B F1
Crypt8-30hx00h: 51 72 28 D8 17 CC A7 48
Crypt8-28hx00h: B9 67 C7 2D BB AB 70 36
Crypt8-20hx00h: 04 80 03 5A 03 BC 1D E1
Crypt8-18hx00h: 4E 87 B3 7C DD 5E F2 21
Crypt8-10hx00h: C0 93 EE AE F2 6E 5C 6B
Crypt8-08hx00h: FA 56 71 22 E6 5A C3 2C

Crypt8-B8hxFFh: 1D 7A 8D 46 F2 10 C5 47
Crypt8-B0hxFFh: 33 19 9D 70 31 06 3E 8A
Crypt8-A8hxFFh: BF BF 1F 4D F4 EE B2 19
Crypt8-A0hxFFh: 75 5F 9E 30 85 8C 1C 9C
Crypt8-98hxFFh: 1F 74 6B 8C 19 52 61 EA
Crypt8-90hxFFh: 38 D7 96 03 39 C8 87 D4
Crypt8-88hxFFh: 17 AC 3C 35 F7 85 9E 52
Crypt8-80hxFFh: E0 B5 25 C7 E2 D2 56 E7
Crypt8-78hxFFh: BF BD 61 54 7C 91 E7 DF
Crypt8-70hxFFh: 82 4A 6D 52 C9 7F 7A 7F
Crypt8-68hxFFh: A5 B4 1A 0D 8A 9C 79 60
Crypt8-60hxFFh: BC 61 0B 0E CE AF 83 19
Crypt8-58hxFFh: C3 DA 25 5D C5 EA F6 BB
Crypt8-50hxFFh: 96 44 F2 F6 79 2B E7 00
Crypt8-48hxFFh: 08 92 A1 D4 F8 10 43 F4
Crypt8-40hxFFh: 39 A9 F5 16 02 37 FA 03
Crypt8-38hxFFh: 40 A3 C4 38 87 5C 60 12
Crypt8-30hxFFh: 2A 15 6D E6 72 E1 35 DB
Crypt8-28hxFFh: E2 54 40 DE 66 C3 6A 50
Crypt8-20hxFFh: D3 FA 6A 5B EB 5D 13 6E
Crypt8-18hxFFh: 1F 92 D7 4A 14 9B 79 1F
Crypt8-10hxFFh: A5 4C 73 45 2F C9 59 98
Crypt8-08hxFFh: A9 E8 C9 59 97 A3 74 B7

TS file: C:\!Records\7.0E_11106,760_H_7201_(2023-11-11 18.27.18)_dump.ts
Using all PIDs
Using file limit: 4096 MByte
File length: 115 MByte
UsingFileLen: 121075760 bytes
Reading file ...
Searching ...
Using payload size: 184
PID: 200h B8h-Crypt8:1D 7A 8D 46 F2 10 C5 47 [E] Count:55919
PID: 200h B8h-Crypt8:00 4D E7 4A F8 70 BA 93 [E] Count:2
PID: 200h B8h-Crypt8:11 24 1A 29 B2 39 D6 F4 [E] Count:2
PID: 200h B8h-Crypt8:6B A5 AB BC 4E 13 13 2C [E] Count:2
PID: 200h B8h-Crypt8:7A B4 A8 B1 16 ED 32 64 [E] Count:2
PID: 200h B8h-Crypt8:9D 5A 1C 0F EE 96 89 FA [E] Count:2
PID: 200h B8h-Crypt8:FB F3 25 E0 50 F0 4D 46 [E] Count:2

Time for searching Crypt8 = 0 sec.
Search Crypt8 in TS Start
TS file: C:\!Records\7.0E_11106,760_H_7201_(2023-11-11 18.27.18)_dump.ts
Using all PIDs
Using file limit: 4096 MByte
File length: 115 MByte
UsingFileLen: 121075760 bytes
Reading file ...
Searching ...
Using payload size: 8
PID: 200h 08h-Crypt8:A9 E8 C9 59 97 A3 74 B7 [E] Count:8
PID: 200h 08h-Crypt8:13 B6 00 FE 61 C4 CD 08 [E] Count:4
PID: 200h 08h-Crypt8:0D 4E A2 08 6F 34 24 A9 [E] Count:2

Time for searching Crypt8 = 0 sec.

You must log in or register to reply here.
Top
