Icelandic Siminn Sport on 27.5 West.... I Think

Yeoman

Registered
Messages
71
27.5 West 11611 V 02915

I think its fta but it may not be as simple as that.

Can anyone get the signal, get the channel and open it ?

I'm not sure its as available as it seems.

Thanks


EnoSat

Well Known Member
Messages
2,305
On pid 512 (0x200) in two addresses
Code:
Destination address: e4050607 [= 228.5.6.7]
Destination address: e4050608 [= 228.5.6.8]
and 12 ports
Code:
Destination port: 1234 (0x04d2)
Destination port: 1235 (0x04d3)
Destination port: 2345 (0x0929)
Destination port: 2346 (0x092a)
Destination port: 3456 (0x0d80)
Destination port: 3457 (0x0d81)
Destination port: 4567 (0x11d7)
Destination port: 4568 (0x11d8)
Destination port: 5678 (0x162e)
Destination port: 5679 (0x162f)
Destination port: 6789 (0x1a85)
Destination port: 6790 (0x1a86)
various ff 09 and ff fb streams are broadcast
Code:
PID:  512 (0x0200)

Guess table from table id...
DSM-CC DATAGRAM-decoding....
Table_ID: 62 (0x3e)  [= DSM-CC - private data section  // DVB datagram]
section_syntax_indicator: 1 (0x01)
private_indicator: 0 (0x00)
reserved_1: 3 (0x03)
Section_length: 1497 (0x05d9)
MACaddrbyte/DevicdID 6: 7 (0x07)
MACaddrbyte/DeviceID 5: 6 (0x06)
reserved_2: 3 (0x03)
payload_scrambling_control: 0 (0x00)  [= unscrambled]
address_scrambling_control: 0 (0x00)  [= unscrambled]
LLC_SNAP_flag: 0 (0x00)
current_next_indicator: 1 (0x01)  [= valid now]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)
MACaddrbyte/DeviceID 4: 5 (0x05)
MACaddrbyte/DeviceID 3: 94 (0x5e)
MACaddrbyte/DeviceID 2: 0 (0x00)
MACaddrbyte/DeviceID 1: 1 (0x01) => MAC-Address/DeviceID: 01:00:5e:05:06:07

IP_datagram_bytes:
    Version: 4 (0x04)
    IP header length: 5 (0x05)
    Type of service: 0 (0x00)
    Total length: 1484 (0x05cc)
    Identification: 56214 (0xdb96)
    Reserved: 0 (0x00)
    DF: 1 (0x01)
    MF: 0 (0x00)
    Fragment offset: 0 (0x0000)
    Time to live: 15 (0x0f)
    Protocol: 17 (0x11)  [= UDP]
    Header checksum: 35195 (0x897b)
    Source address: 0a0a0cf9 [= 10.10.12.249]
    Destination address: e4050607 [= 228.5.6.7]

    UDP_datagram:
        Source port: 50062 (0xc38e)
        Destination port: 1234 (0x04d2)
        Length: 1464 (0x05b8)
        Checksum: 20348 (0x4f7c)
        Data
              0000:  80 0e 0e 40 bf f7 d6 50  13 f1 5e eb 00 00 00 00   [email protected]..^.....
              0010:  ff fb 14 c4 e6 80 44 c0  2f 74 83 b0 c0 c0 8e 85   ......D./t......
              0020:  af b4 64 98 18 a3 54 ae  8a 57 65 88 88 75 69 6c   ..d...T..We..uil
              0030:  00 00 14 85 90 0e 66 a2  60 91 e6 9a 75 1c d5 12   ......f.`...u...
              0040:  83 9f 08 4b 2b 7d ec 80  64 c4 4c eb 22 a7 6e 61   ...K+}..d.L.".na
              0050:  3b 28 00 39 22 84 69 0a  01 23 87 52 5a 79 87 b8   ;(.9".i..#.RZy..
...


Yeoman

Registered
Messages
71
On pid 512 (0x200) in two addresses
Code:
Destination address: e4050607 [= 228.5.6.7]
Destination address: e4050608 [= 228.5.6.8]
and 12 ports
Code:
Destination port: 1234 (0x04d2)
Destination port: 1235 (0x04d3)
Destination port: 2345 (0x0929)
Destination port: 2346 (0x092a)
Destination port: 3456 (0x0d80)
Destination port: 3457 (0x0d81)
Destination port: 4567 (0x11d7)
Destination port: 4568 (0x11d8)
Destination port: 5678 (0x162e)
Destination port: 5679 (0x162f)
Destination port: 6789 (0x1a85)
Destination port: 6790 (0x1a86)
various ff 09 and ff fb streams are broadcast
Code:
PID:  512 (0x0200)

Guess table from table id...
DSM-CC DATAGRAM-decoding....
Table_ID: 62 (0x3e)  [= DSM-CC - private data section  // DVB datagram]
section_syntax_indicator: 1 (0x01)
private_indicator: 0 (0x00)
reserved_1: 3 (0x03)
Section_length: 1497 (0x05d9)
MACaddrbyte/DevicdID 6: 7 (0x07)
MACaddrbyte/DeviceID 5: 6 (0x06)
reserved_2: 3 (0x03)
payload_scrambling_control: 0 (0x00)  [= unscrambled]
address_scrambling_control: 0 (0x00)  [= unscrambled]
LLC_SNAP_flag: 0 (0x00)
current_next_indicator: 1 (0x01)  [= valid now]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)
MACaddrbyte/DeviceID 4: 5 (0x05)
MACaddrbyte/DeviceID 3: 94 (0x5e)
MACaddrbyte/DeviceID 2: 0 (0x00)
MACaddrbyte/DeviceID 1: 1 (0x01) => MAC-Address/DeviceID: 01:00:5e:05:06:07

IP_datagram_bytes:
    Version: 4 (0x04)
    IP header length: 5 (0x05)
    Type of service: 0 (0x00)
    Total length: 1484 (0x05cc)
    Identification: 56214 (0xdb96)
    Reserved: 0 (0x00)
    DF: 1 (0x01)
    MF: 0 (0x00)
    Fragment offset: 0 (0x0000)
    Time to live: 15 (0x0f)
    Protocol: 17 (0x11)  [= UDP]
    Header checksum: 35195 (0x897b)
    Source address: 0a0a0cf9 [= 10.10.12.249]
    Destination address: e4050607 [= 228.5.6.7]

    UDP_datagram:
        Source port: 50062 (0xc38e)
        Destination port: 1234 (0x04d2)
        Length: 1464 (0x05b8)
        Checksum: 20348 (0x4f7c)
        Data
              0000:  80 0e 0e 40 bf f7 d6 50  13 f1 5e eb 00 00 00 00   [email protected]..^.....
              0010:  ff fb 14 c4 e6 80 44 c0  2f 74 83 b0 c0 c0 8e 85   ......D./t......
              0020:  af b4 64 98 18 a3 54 ae  8a 57 65 88 88 75 69 6c   ..d...T..We..uil
              0030:  00 00 14 85 90 0e 66 a2  60 91 e6 9a 75 1c d5 12   ......f.`...u...
              0040:  83 9f 08 4b 2b 7d ec 80  64 c4 4c eb 22 a7 6e 61   ...K+}..d.L.".na
              0050:  3b 28 00 39 22 84 69 0a  01 23 87 52 5a 79 87 b8   ;(.9".i..#.RZy..
...
Thanks

What does all that mean exactly ?


EnoSat

Well Known Member
Messages
2,305
That you can watch 1 TV program, 1 TV feed and listen to 6 radio stations from the mentioned transponder


EnoSat

Well Known Member
Messages
2,305

Code:
root@osmio4kplus:~# dvbsnoop -s pidscan
dvbsnoop V1.4.56 -- https://github.com/OpenVisionE2/dvbsnoop

---------------------------------------------------------
Transponder PID-Scan...
---------------------------------------------------------
PID found:    0 (0x0000)  [SECTION: Program Association Table (PAT)]
PID found:   16 (0x0010)  [SECTION: Network Information Table (NIT) - actual network]
PID found:   20 (0x0014)  [SECTION: Time Date Table (TDT)]
PID found:  512 (0x0200)  [SECTION: DSM-CC - private data section  // DVB datagram]
PID found:  621 (0x026d)  [SECTION: User private]
PID found: 1020 (0x03fc)  [SECTION: ATSC reserved]
PID found: 1021 (0x03fd)  [SECTION: ATSC reserved]
PID found: 8190 (0x1ffe)  [unknown]
root@osmio4kplus:~#
Code:
root@osmio4kplus:~# astra --analyze pipe://"dvbsnoop 512 -b"
Sep 15 22:04:26: INFO: Starting Astra SM 0.2
Sep 15 22:04:26: INFO: [pipe_input analyze] process started (pid = 32083)
Sep 15 22:04:27: INFO: PAT: tsid: 264
Sep 15 22:04:27: INFO: PAT: pid: 260 PMT pnr: 1
Sep 15 22:04:27: INFO: PAT: crc32: 0xCC754526
Sep 15 22:04:27: INFO: PMT: pnr: 1
Sep 15 22:04:27: INFO: PMT: pid: 280 PCR
Sep 15 22:04:27: INFO: VIDEO: pid: 280 type: HEVC/H.265, ISO/IEC 23008-2 (0x24)
Sep 15 22:04:27: INFO: AUDIO: pid: 281 type: ADTS AAC, ISO/IEC 13818-7 (0x0F)
Sep 15 22:04:27: INFO: PMT: crc32: 0xA1120E9D
Sep 15 22:04:27: INFO: SDT: tsid: 264
Sep 15 22:04:27: INFO: SDT: sid: 1
Sep 15 22:04:27: INFO: SDT:    Service: Service01
Sep 15 22:04:27: INFO: SDT:    Provider: FFmpeg
Sep 15 22:04:27: INFO: SDT: crc32: 0x7281165
Sep 15 22:04:27: INFO: Bitrate: 505 Kbit/s
...
Code:
root@osmio4kplus:~# dvbsnoop -n 1 -nph 512
dvbsnoop V1.4.56 -- https://github.com/OpenVisionE2/dvbsnoop

------------------------------------------------------------
SECT-Packet: 00000001   PID: 512 (0x0200), Length: 1360 (0x0550)
Time received: Sun 2024-09-15  22:08:00.000
------------------------------------------------------------
PID:  512 (0x0200)

Guess table from table id...
DSM-CC DATAGRAM-decoding....
Table_ID: 62 (0x3e)  [= DSM-CC - private data section  // DVB datagram]
section_syntax_indicator: 1 (0x01)
private_indicator: 0 (0x00)
reserved_1: 3 (0x03)
Section_length: 1357 (0x054d)
MACaddrbyte/DevicdID 6: 8 (0x08)
MACaddrbyte/DeviceID 5: 6 (0x06)
reserved_2: 3 (0x03)
payload_scrambling_control: 0 (0x00)  [= unscrambled]
address_scrambling_control: 0 (0x00)  [= unscrambled]
LLC_SNAP_flag: 0 (0x00)
current_next_indicator: 1 (0x01)  [= valid now]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)
MACaddrbyte/DeviceID 4: 5 (0x05)
MACaddrbyte/DeviceID 3: 94 (0x5e)
MACaddrbyte/DeviceID 2: 0 (0x00)
MACaddrbyte/DeviceID 1: 1 (0x01) => MAC-Address/DeviceID: 01:00:5e:05:06:08

IP_datagram_bytes:
    Version: 4 (0x04)
    IP header length: 5 (0x05)
    Type of service: 0 (0x00)
    Total length: 1344 (0x0540)
    Identification: 0 (0x0000)
    Reserved: 0 (0x00)
    DF: 1 (0x01)
    MF: 0 (0x00)
    Fragment offset: 0 (0x0000)
    Time to live: 49 (0x31)
    Protocol: 17 (0x11)  [= UDP]
    Header checksum: 17321 (0x43a9)
    Source address: 0a0a0ced [= 10.10.12.237]
    Destination address: e4050608 [= 228.5.6.8]

    UDP_datagram:
        Source port: 43393 (0xa981)
        Destination port: 2345 (0x0929)
        Length: 1324 (0x052c)
        Checksum: 605 (0x025d)
        Data
              0000:  47 01 18 10 38 7b 79 9c  f9 71 14 1f 21 94 17 9e   G...8{y..q..!...
              0010:  cb ef b0 b4 48 48 c3 6b  7c 0f df ab 99 2f aa 36   ....HH.k|..../.6
              0020:  d3 d8 45 b4 9c 49 6e 8c  2e 9d 0d e0 a8 5e 93 97   ..E..In......^..
              0030:  8b 49 a9 2c f3 69 26 d3  e0 a8 a5 5c 4e ba 47 9a   .I.,.i&....\N.G.
              0040:  b8 90 22 f5 b2 48 b4 ed  ba 84 66 d4 26 fe b1 9c   .."..H....f.&...
              0050:  5a 01 8f 92 4f 92 ac bd  4f b6 2a 85 7b 11 cf 17   Z...O...O.*.{...
              0060:  58 e5 17 34 23 ec 97 e2  6a 9d c6 f8 c5 f3 c6 ec   X..4#...j.......
              0070:  9a 21 df 0c 44 d4 fb 4a  b7 e9 34 4b 66 01 bb 4b   .!..D..J..4Kf..K
              0080:  b1 af 2d b5 62 04 2d 2c  a6 ae 76 34 a9 a0 f4 cb   ..-.b.-,..v4....
              0090:  b9 93 06 a6 91 79 df 09  c9 a3 92 fd 81 cb 0a 01   .....y..........
              00a0:  a7 4d 61 c6 da f3 5e 0f  bc e6 a9 f7 ef 89 e4 be   .Ma...^.........
              00b0:  57 9b 4d 3c 55 16 7e 27  9d 61 3f 01 47 01 18 11   W.M<U.~'.a?.G...
              00c0:  79 ea 6f e2 89 1a d8 52  bd a8 5b aa 8e 6c c7 54   y.o....R..[..l.T
              00d0:  55 1d f3 3f 37 2f de 8b  c1 39 a7 91 65 37 9f 34   U..?7/...9..e7.4
              00e0:  ab e1 00 83 f2 d3 d6 ba  b9 a3 c9 7b 4b a2 75 9f   ...........{K.u.
              00f0:  7f 40 17 0a 86 77 4b c6  c0 38 61 f2 bb 2f f9 da   [email protected]../..
              0100:  67 75 cf 56 7f bf 37 96  da 96 29 09 eb 09 b4 ab   gu.V..7...).....
              0110:  35 4c ac ce bf f4 40 a8  84 d1 87 ce ea 88 d4 ae   5L....@.........
              0120:  90 41 c5 cb c4 5a 15 b2  58 01 a7 74 4f b8 cb ce   .A...Z..X..tO...
              0130:  68 d0 57 57 6b 38 ae 49  80 38 c9 c7 54 51 b0 2e   h.WWk8.I.8..TQ..
              0140:  87 11 f0 3d 5e 4c d8 fb  2b 43 81 93 90 1c 2d 95   ...=^L..+C....-.
              0150:  bd 00 01 06 2b b9 f7 e4  10 ac 97 ef fe d0 c9 b2   ....+...........
              0160:  6e 02 14 b7 84 0d 95 d2  58 63 35 47 54 b3 3a 70   n.......Xc5GT.:p
              0170:  d8 da f7 43 ca 7b ae cf  47 01 18 32 8c 00 ff ff   ...C.{..G..2....
              0180:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              0190:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01a0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01b0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01c0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01d0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01e0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              01f0:  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff   ................
              0200:  ff ff ff ff ff ff ff ff  ff c1 76 b0 7c ed f4 55   ..........v.|..U
              0210:  76 ef ce bb 91 bc 6d 95  ef 15 10 ac 32 fc a2 57   v.....m.....2..W
              0220:  ca 6b cc 35 39 06 9f 8f  4d 9a c3 af 65 6d 37 dd   .k.59...M...em7.
              0230:  8d a4 bc a0 47 41 18 33  07 50 26 8a 56 b9 fe 00   ....GA.3.P&.V...
              0240:  00 00 01 e0 0f 31 80 80  05 23 34 55 74 27 00 00   .....1...#4Ut'..
              0250:  00 01 02 01 d0 00 09 7f  48 0c ad f5 48 a8 2e ca   ........H...H...
              0260:  95 0e ce a9 8b 37 4d cc  6c 83 4b 20 f1 3f 93 40   .....7M.l.K .?.@
              0270:  37 37 2b 87 4c 34 1a 0e  14 14 af ac 1d 67 e9 8b   77+.L4.......g..
              0280:  b5 98 d6 96 44 35 21 da  56 aa 70 ae 54 3c cb e1   ....D5!.V.p.T<..
              0290:  59 25 86 09 7f 5b 9d f4  3a 83 2d d0 7b 41 d0 23   Y%...[..:.-.{A.#
              02a0:  73 e7 90 fe be 41 58 fc  32 c7 17 c5 8b 8e 62 75   s....AX.2.....bu
              02b0:  a4 89 28 38 97 b5 e0 45  19 d7 e9 fa d6 48 7e 4f   ..(8...E.....H~O
              02c0:  a4 14 00 86 d3 57 03 6c  ab e8 09 36 b2 56 1f 85   .....W.l...6.V..
              02d0:  7a 05 2b 82 be 05 83 6c  89 98 34 8a aa 18 26 12   z.+....l..4...&.
              02e0:  65 2d fc 97 50 3c f7 e1  a4 10 a9 03 c2 c5 92 38   e-..P<.........8
              02f0:  47 01 18 14 0f 6d 20 1a  7d bb d9 b4 15 53 ee 74   G....m .}....S.t
              0300:  63 b7 9a 09 7d ae 1f 79  4e 81 12 ec 49 2e e5 3e   c...}..yN...I..>
              0310:  f2 05 b6 e0 90 71 27 d8  9c e8 18 4c 6a ea 44 7f   .....q'....Lj.D.
              0320:  11 38 b5 49 ba f2 93 c8  9c f4 41 7b 03 17 fe 0e   .8.I......A{....
              0330:  12 e5 58 e0 62 e7 6a 89  38 2f 37 23 05 2b 4c f6   ..X.b.j.8/7#.+L.
              0340:  ef 34 72 5b 7b b0 d9 0b  cb 86 62 5b 1d 4e b2 0f   .4r[{.....b[.N..
              0350:  ce 2f 3c d9 eb 4b ba 3b  2c 07 f2 40 65 7a dd 9c   ./<..K.;,..@ez..
              0360:  93 8d bf 90 15 e5 cc 0f  04 57 29 3d d6 3e 64 c6   .........W)=.>d.
              0370:  9a 1b aa 7e 67 c9 b2 e7  df 62 9e 60 6e 03 a7 8c   ...~g....b.`n...
              0380:  9b 0f 44 20 25 3f a0 18  bc ee 70 13 7a 2d 43 90   ..D %?....p.z-C.
              0390:  48 92 49 c8 8b 2e 9c 05  6b c3 c2 90 16 13 52 29   H.I.....k.....R)
              03a0:  01 47 2b 2e e7 d3 7c 10  97 68 79 a0 47 01 18 15   .G+...|..hy.G...
              03b0:  4d 10 1a ca 2c d8 83 a0  41 cf eb b3 2e a6 89 11   M...,...A.......
              03c0:  bf b5 6f f4 fd 8a cf 34  66 86 44 9a a9 f6 c6 06   ..o....4f.D.....
              03d0:  bf 5e 07 8c 67 91 cb 60  b2 30 ec 0d ce 7e 14 b4   .^..g..`.0...~..
              03e0:  35 fd bc 59 bf 8c f6 b8  46 f2 d0 df f0 1b 79 81   5..Y....F.....y.
              03f0:  18 bb e1 57 aa 95 67 d5  c7 0b f7 63 f9 2c ea 02   ...W..g....c.,..
              0400:  8f 86 2b 77 2e f2 5e 54  ba 7f a6 15 70 44 ba 03   ..+w..^T....pD..
              0410:  f1 6a 4b 42 d2 07 c0 e5  c8 36 47 c4 eb ab 3b e1   .jKB.....6G...;.
              0420:  07 8b 17 68 26 32 c2 05  cc 9f 90 e3 bd bd 40 2b   ...h&2........@+
              0430:  3c c9 98 33 29 ad 5c c1  3b bd b3 a5 d9 c7 15 eb   <..3).\.;.......
              0440:  5d f6 ea a2 02 00 03 15  bb 85 e2 67 75 a2 f2 c8   ]..........gu...
              0450:  29 ec 80 16 fb 83 9a 12  19 f5 91 15 65 9b c2 e6   )...........e...
              0460:  b1 04 45 6e 4b 3a 7c bc  47 01 18 16 13 26 99 c4   ..EnK:|.G....&..
              0470:  15 21 b5 c9 c3 ef 59 2c  96 4f 47 27 5c 58 be 64   .!....Y,.OG'\X.d
              0480:  de 4c 09 dc b2 8d 79 4f  4b 91 dc c3 1f 09 f7 6c   .L....yOK......l
              0490:  21 7c 69 b5 d9 9f b2 aa  cf 65 2c ae c7 ff 12 4d   !|i......e,....M
              04a0:  c9 6f 45 c6 9b 4a 27 c1  8c be 42 67 6c 9b de f3   .oE..J'...Bgl...
              04b0:  6e 7f a8 0e b4 bd 7f 0f  4e 7f fd 3f d5 88 39 f3   n.......N..?..9.
              04c0:  1c b3 34 f9 e7 de a5 43  95 c7 b9 e3 14 68 5d a9   ..4....C.....h].
              04d0:  50 5b e2 cc d0 c9 df 38  59 05 df 31 07 22 be 3f   P[.....8Y..1.".?
              04e0:  0e 4e 0e e8 11 00 ed 9a  7d 46 02 93 0c 4a 71 04   .N......}F...Jq.
              04f0:  b0 97 55 2a 62 61 52 b6  6f c7 ff 72 f4 90 fc 5e   ..U*baR.o..r...^
              0500:  66 17 e3 c3 e0 af 7f d9  74 a5 c0 06 89 8a 80 50   f.......t......P
              0510:  a5 34 0e b6 6d 8b 48 d4  a0 4f ca 9a 2f 71 38 df   .4..m.H..O../q8.
              0520:  d7 d2 87 41                                        ...A

CRC: 1379125501 (0x5233c8fd)
==========================================================

root@osmio4kplus:~#

Last edited:

manic01

Super VIP
Messages
3,196
I haven't a clue what you're talking about.
It sounds very technical to me, so I will forget it I think.
He has no intentions of helping you or would of tried to guide you step by step knowing you are a novice.


EnoSat

Well Known Member
Messages
2,305
First of all, he did not say what he is receiving it on, and secondly, there is a whole thread on the forum about how to receive IP streams from a satellite.


keyhole

Registered
Messages
12
hmm. i tried to use the search with "how to receive ip streams" or "ip streams" and similar. But i was not able to find a "tutorial"...


Maxx@

Member
Messages
91

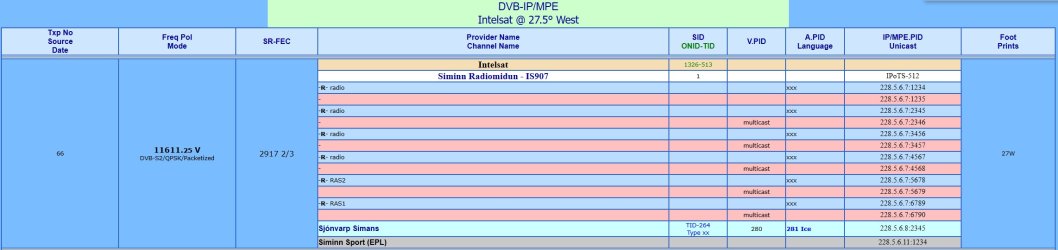

What is the sat position? 27.5W or 36E.

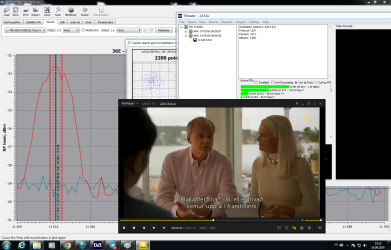

Because in this screenshot you can see 36E.

Top
