DVB-S2X

EnoSat

Well-known member
Messages
1,398
Which receivers can tune the new DVB-S2X transponders with Long and Short Frame mode?
My box EDISION OS mio+ 4K with AVL6261C can only process Long Frame Mode.



satellites.xml for testing DVB-S2X Long/Short Frame Mode
XML:
<transponder frequency="10730000" symbol_rate="34285000" polarization="0" fec_inner="0" system="1" modulation="0"/><!-- short -->
<transponder frequency="10770000" symbol_rate="34285000" polarization="1" fec_inner="0" system="1" modulation="0"/><!-- long -->

PS:
Theoretically, after changing to AVL6261A, both Long and Short should work, but I have no idea who would undertake such a change.

Last edited:

rpl

New member
Messages
16
13 E nice catch, not in any charts.
I can not scan that despite permanent signal lock on SF4008 (Si21622) and good signal 10 dB. About 30W lock is not permanent and also can not scan.

Can you extract parametrs of this transponder and channels on 13E from lamedb ?


EnoSat

Well-known member
Messages
1,398
My HD51 and SF8008 with Si2166D they also cannot scan these new transponders

Code:
00823095:041f:0001
    s 12437000:31429000:0:0:130:2:0:1:0:0:2
/

0001:00823095:041f:0001:0:0:0

p:
041f:00823095:041f:0001:14:0:0
M_Ku_RMB_HB13_EU_N01_1055
p:M_Ku_RMB_HB13_EU_N01_1055,c:031fff

  • Like
Reactions: rpl

Channel Flicker

Donating Member
Messages
38
Which receivers can tune the new DVB-S2X transponders with Long and Short Frame mode?
My box EDISION OS mio+ 4K with AVL6261C can only process Long Frame Mode.


satellites.xml for testing DVB-S2X Long/Short Frame Mode
XML:
<transponder frequency="10730000" symbol_rate="34285000" polarization="0" fec_inner="0" system="1" modulation="0"/><!-- short -->
<transponder frequency="10770000" symbol_rate="34285000" polarization="1" fec_inner="0" system="1" modulation="0"/><!-- long -->

PS:
Theoretically, after changing to AVL6261A, both Long and Short should work, but I have no idea who would undertake such a change.


Could you please tell me what is the indicator or flag that identifies short frame mode in the DVB-S2X list and the xml list that you linked to ?


EnoSat

Well-known member
Messages
1,398
none in enigma, either the tuner can handle (etc. AVL6261) it or it can't (Si2166D,Si21622)
If someone has another tuner, they can write whether they can do it or not


Channel Flicker

Donating Member
Messages
38
none in enigma, either the tuner can handle (etc. AVL6261) it or it can't (Si2166D,Si21622)
If someone has another tuner, they can write whether they can do it or not


If anyone has DVB-S2X tuners in receivers or TBS cards they need to know how to identify a short frame mode frequency. The only one you have listed is the one here

<transponder frequency="10730000" symbol_rate="34285000" polarization="0" fec_inner="0" system="1" modulation="0"/><!-- short -->

In your xml file none of the frequencies have the -- short--> indicator.
Not every person can receive Euro satellites so how would they know what to look for if they wanted to test?


EnoSat

Well-known member
Messages
1,398
Did you open the XML file from the first post?
Did you open the page with frequencies and positions from the first post?


Channel Flicker

Donating Member
Messages
38
OK, I see now


EnoSat

Well-known member
Messages
1,398

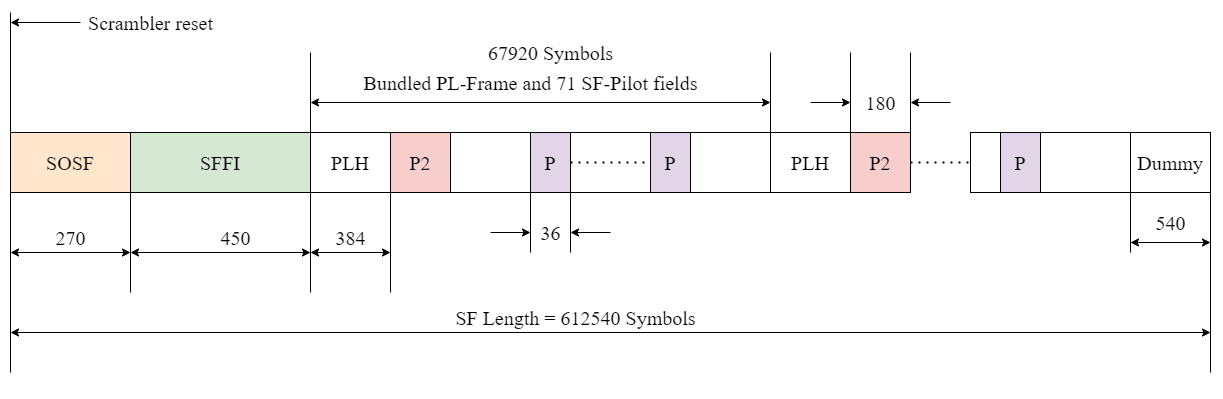

It is a similar question as to differentiate in the enigma DVB-S2 and as DVB-S2X.
-short-

-long-(-normal)

or simple table in ETSI EN 302 307

Last edited:

Channel Flicker

Donating Member
Messages
38
I can scan on sf8008 but not lock


EnoSat

Well-known member
Messages
1,398
yes, SF8008 used Si2166D and momentary not support + no solution even on octagon forum :confused:
There was a similar problem when receiving FAN3 from Hispasat (unstable on Si2166D and stable on AVL6261)
vs.
FAN3

Last edited:

Channel Flicker

Donating Member
Messages
38
Which receivers can tune the new DVB-S2X transponders with Long and Short Frame mode?
My box EDISION OS mio+ 4K with AVL6261C can only process Long Frame Mode.


satellites.xml for testing DVB-S2X Long/Short Frame Mode
XML:
<transponder frequency="10730000" symbol_rate="34285000" polarization="0" fec_inner="0" system="1" modulation="0"/><!-- short -->
<transponder frequency="10770000" symbol_rate="34285000" polarization="1" fec_inner="0" system="1" modulation="0"/><!-- long -->

PS:
Theoretically, after changing to AVL6261A, both Long and Short should work, but I have no idea who would undertake such a change.


What receiver or how did you get the satellites.xml file you linked in post 1?
I scanned 23.5e and exported xml but it does not look like your file and not list any info about short mode.

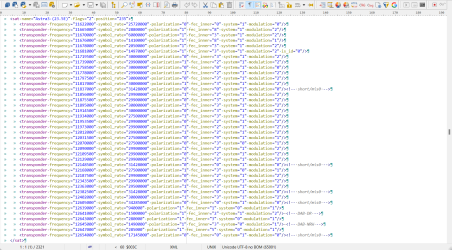

23.5e xml.jpg


EnoSat

Well-known member
Messages
1,398
Modulation better 0 (AUTO) as 1 (QPSK)
System must be 1 (DVB-S2/S2X) , if 0 (DVB-S)

Last edited:

Channel Flicker

Donating Member
Messages
38
Yes I can see the picture you uploaded but you not answer my question about how you got it with the details of the short mode included.


EnoSat

Well-known member
Messages
1,398
from TBS5520SE (post5) , blindscan in Mio+ detected only transponders with Long Frame
another limitation in mio is SR max 60000 :(

Last edited:

demosat1

Member
Messages
37
Hi,
Qviart linux 4k
Isn't easy to lock with GUI but. i wait... i wait ... and bingo !




EnoSat

Well-known member
Messages
1,398
Do you happen to know if QVIART Lunix4K uses AVL6261C or AVL6261A?


jdavid22

Member
Messages
132
in 67w tp 11890v sr49000 it also takes time to download the channels even though it does lock, as they say above it is to try and try and then OKOK I use vu zero4k


demosat1

Member
Messages
37
I open the Linux4K QVIART to check the components.
And There you go !
AVL6261C




jdavid22

Member
Messages
132
from TBS5520SE (post5) , blindscan in Mio+ detected only transponders with Long Frame
another limitation in mio is SR max 60000 :(
@EnoSat, you recommend the card TBS5520SE ?
