Eutelsat 5 West B @ 5° West

[william-1]

The transfer of transponders so far.


https://www.lyngsat.com/Eutelsat-5-West-B.html


https://www.lyngsat.com/Eutelsat-5-West-A.html

The most up to date info is here :thum:



[william-1]

12627 H 35000 2/3 DVB-S2 Mediaset transponder New TV on

Multi-stream 1
Rete 4 HD Vpid=1520 Apid=1522
Canale5 HD Vpid=1500 Apid=1502
Italia 1 HD -------=1510 -------=1512
Radio 105 --------=560 ---------=561
R101 TV------------=610 --------=611

Multi stream 2
Mediaset Italia Due V=440 A=442
TV 243 ---V=3050 A=3051
TV 153----V=3690 A=3691
Sport Italia --V=1690 A=1691
Padre Pio TV ---V=650 A=651
Radio Zeta --V=1040 A=1041



[JanM262]

The most up to date info is here :thum:

17 TPs active on E5WB, i think that it should be a maximum for damaged satellite. But not all fransat transponders are already switched.



[william-1]

17 TPs active on E5WB, i think that it should be a maximum for damaged satellite. But not all fransat transponders are already switched.

I think they are going to need E7A @ 5 west when E7C starts next week @ 7 east.



[empb]

Eutelsat 5°West B Transalpine Beam (Low Vertical):
11179 V - 12.4-14.7 db
11013 V - 11.7-13.9 db

Rai Sport+ HD
-Eutelsat 5°W -11179 V 30000 -FTA(Multistream ONLY!)
Rai Sport
-Eutelsat 5°W -11013 V 30000 -FTA(Multistream ONLY!)

Same Beam: Eutelsat 5°West B Transalpine Beam (High Horizontal/Vertical):
12606 V - 8.2-10.9 db
12627 H - 9-12 db

Sportitalia
-Eutelsat 5°W -12606 V 35500 -FTA(Multistream ONLY!)
-Eutelsat 5°W -12627 H 35000 -FTA(Multistream ONLY!)

So I still get Rai Sport/Rai Sport+, but I have problems with Sportitalia especially at 12627 H (where scan does not even find Sportitalia? Only finds FTA: Servizio OTA1/OTA2/3/4/5/6/12/13/Ghost) on the new Sat



[william-1]

New feed on Eutelsat 5 West B at 5.0°W

11647 H 7200 3/4 DVB-S2 QPSK MPEG-4 FTA (Transalpine beam)
id=PCO HD 03 (Euromillions Feed), Vpid=512 Apid=4112



[barney115]

I have problems with Sportitalia especially at 12627 H

Sport italia 77% Here now it was a lot weaker earlier today...
i cant lock that Euromillions Feed however i guess its Left already ?? ..



[william-1]

12627 H 35000 2/3 DVB-S2 Mediaset transponder New TV on

Multi-stream 1
Rete 4 HD Vpid=1520 Apid=1522
Canale5 HD Vpid=1500 Apid=1502
Italia 1 HD -------=1510 -------=1512
Radio 105 --------=560 ---------=561
R101 TV------------=610 --------=611

Multi stream 2
Mediaset Italia Due V=440 A=442
TV 243 ---V=3050 A=3051
TV 153----V=3690 A=3691
Sport Italia --V=1690 A=1691
Padre Pio TV ---V=650 A=651
Radio Zeta --V=1040 A=1041

All TV has left this transponder,

Euromillions no signal now but will return later.



[maumixio]

All TV has left this transponder,

Replaced by SkyIta Digital Terrestrial this morning



[Mikelsat]

All TV has left this transponder,

I'm getting these channels now on TP 12627 H 35000
M:1 -Sky Sport Serie A, Premium Action, Sky Sport Uno, Sky Sport Uno HD, Sky Sport 24, Sky Uno & 3 Sky Sport channels (currently showing test cards).
M:2 - Sky Atlantic, FOX, National Geographic, Premium Stories, Premium Crime, Sky Sport Serie A HD, Sky Sport 24 HD (Test Card), Premium Emotion.



[barney115]

I'm getting these channels now on TP 12627 H 35000
M:1 -Sky Sport Serie A, Premium Action, Sky Sport Uno, Sky Sport Uno HD, Sky Sport 24, Sky Uno & 3 Sky Sport channels (currently showing test cards).
M:2 - Sky Atlantic, FOX, National Geographic, Premium Stories, Premium Crime, Sky Sport Serie A HD, Sky Sport 24 HD (Test Card), Premium Emotion.

Yes i have those too signal 77% which is a lot better than before and should be possible to lock on a smaller sized dish just wish the Sport would carry both Italian and English Audio tracks instead of only Italian language .



[JanM262]

Could someone confirm that 12543 H is disconnected? I have no signal on this TP.



[william-1]

Could someone confirm that 12543 H is disconnected? I have no signal on this TP.

12543 H is working OK here you probably need to re-scan with multi-stream selected you need to do this otherwise your receiver will not see the active Multi-Stream transponders,

All transponders are up to date now here:-
https://www.flysat.com/e5wab.php :thum:



[pipino]

....



[william-1]

All Satellite chart compilers do their best with input from enthusiasts like myself & others here on this & other forums,

If you spot a change to the satellite listings then contact them with your findings & it will be corrected :thum:



[JanM262]

12543 H is working OK here you probably need to re-scan with multi-stream selected you need to do this otherwise your receiver will not see the active Multi-Stream transponders,

All transponders are up to date now here:-
https://www.flysat.com/e5wab.php :thum:

I know that this transponder is multistream, as it was on an old E5WA but i have no signal on this transponder so rescan should not help.



[william-1]

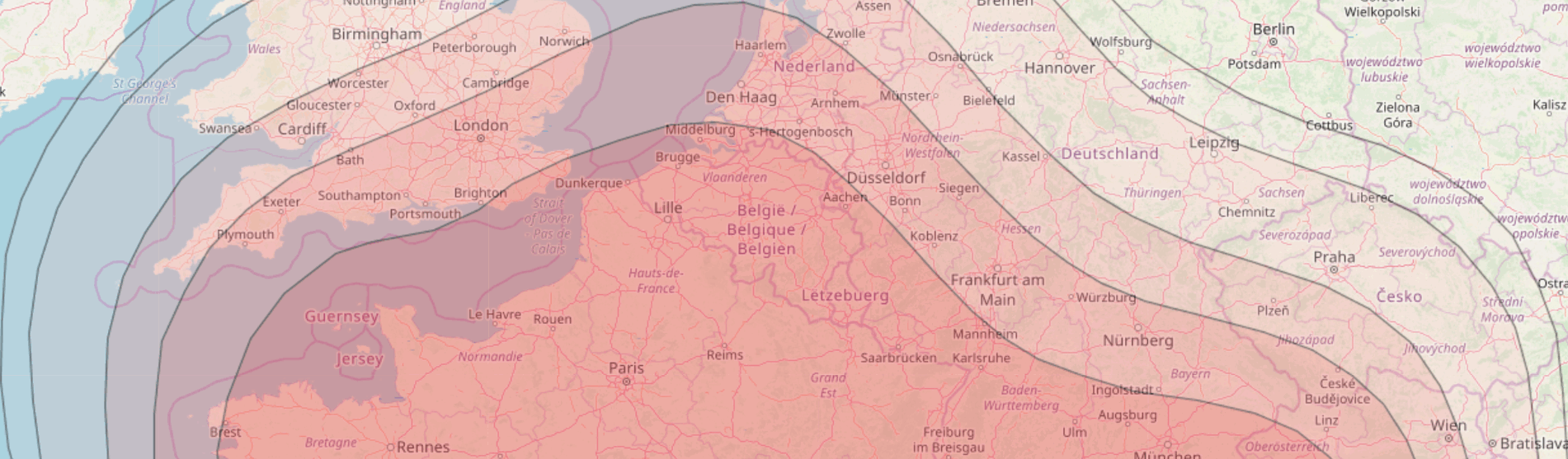

The only European beam in use by Eutelsat 5 West B is the Transalpine beam the other beam has been removed from the Eutelsat site as the damaged satellite does not have the capacity for it.

https://www.eutelsat.com/en/satellites/eutelsat-5-west.html

https://news.eutelsat.com/pressreleases/update-on-eutelsat-5-west-b-status-2961716

The Algerian downlink is still there as well but not used currently for the same reason when another satellite joins E5WB in the future it may be activated when additional capacity is made available for the rest of the transponders still on E5WA.



[EnoSat]

Could someone confirm that 12543 H is disconnected? I have no signal on this TP.

need minimal 10.7 dB for LOCK
nie je dosiahnuta uroven 10.7 dB pre zaklucovanie



[william-1]

I know that this transponder is multistream, as it was on an old E5WA but i have no signal on this transponder so rescan should not help.

Maybe you need a bigger dish as the transponder is definitely active here in the East of England.



[EnoSat]

Maybe you need a bigger dish as the transponder is definitely active here in the East of England.

Location wiliam-1 = Location Ceske Budejovice in JanM262 country
