DAB+ radio on sat for Enigma2 Linux decoders

Victor64 · Nov 21, 2023

Yes. I use my Octagon SF 8008. I will check my userbouquet. If I remember well I checked for this file libavcodec.so.60.3.100 and it is installed already.
I was curious to listen on other positions the DAB+ radio stations on satellite.

EnoSat · Nov 21, 2023

Almost all of them can be run in e2 - https://github.com/piratfm/eti-tools#satellite-dab-feeds

keyhole · Dec 5, 2023

maumixio said:
OpenATV 7.3 backup for DAB+ radio on sat Eutelsat 9E and Eutelsat 10E for Octagon SF8008 by Maumixio 2023

Download: _https://www.mediafire.com/file/gr4nphqxvzl807j/openatv-7.3-sf8008-backup-20230711_1502_usb.zip/file

Hi. Sry for the stupid question but how i can install the DAB image for OATV7.3 on my Octagon? When i try to install from USB then the box tells me "no image found"

Victor64 · Dec 5, 2023

Hi, the file need to has an archive format like.zib on the usb drive. And then you will use blue button software manager and flash image.

keyhole · Dec 5, 2023

i have the openatv-7.3-sf8008-20231205_mmc.zip, i unpacked to the root of USB. nevertheless if i choose "from USB" nothing happens.

Victor64 said:
Hi, the file need to has an archive format like.zib on the usb drive. And then you will use blue button software manager and flash image.

ok. the openATV DAB is on the box. i moved to 9 E. 12092. DAB D1 is in the list now. and now? how can i play the DAb programs?

Victor64 · Dec 5, 2023

You must have in Favorites the bouquet DAB D1. Opened and choose the channel that you want. It is important to fix your audio option in the menu. If everything is setup you must have a high quality radio file.

keyhole · Dec 7, 2023

Victor64 said:
You must have in Favorites the bouquet DAB D1. Opened and choose the channel that you want. It is important to fix your audio option in the menu. If everything is setup you must have a high quality radio file.

ok. thank you. What about new DAB? for example on 23,5 E. there are some DAB on 12632, 12641 and 12645. how can i add this one?

Victor64 · Dec 7, 2023

I wish also to know who it could be possible. Maybe some people from this wonderful community will help us the rest of passionate members. Perhaps, Santa Klaus will hep us. Who knows ?!

Francescone · Sep 2, 2024

Time to resume this very interesting thread.
Can anyone post an updated image including all DAB+ feeds from 9E, 5W and 23.5E?
Also, looking for any "how-to" guide to learn how to get DAB+ feeds starting from the very basic steps.
I found something on the net, but they start from a more advanced step and I'm not able to learn due to my poor linux skill. Thanks.

EnoSat · Sep 2, 2024

Satellite sources of DAB feeds - part 4 · Issue #55 · piratfm/eti-tools

Summary of closed issue #35 (= Satellite sources of DAB feeds - part 3) In the past four years there were quite a lot of changings and interesting facts: DAB Italia and EuroDAB Italia feeds have le...

github.com

maumixio · Sep 16, 2024

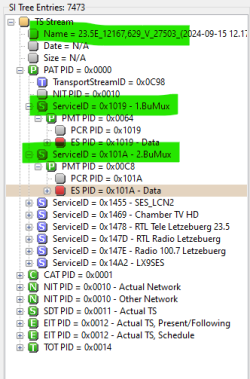

Astra 23.5 i DAB+ freq 12168 V 27500 3/4 DATA : 1.BuMux and 2.BuMux

1.BuMux 12168 V 27500 pid 4121 port 50043 c:151019 reference 1:0:1:1019:C98:3:EB0000:0:0:0
wget http://localhost:8001/1:0:1:1019:C98:3:EB0000:0:0:0 -q -O- |fedi2eti 4121 239.128.43.43 50043 |ni2out --list

es. :
http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x1a45 #ENERGY

Code:

Ensemble: DR Deutschland   (0x10bc)
****************************************************************************
 #  Programme Label   Serv.Id.  P/S SubCh Capac.Units   Prot.   Bitrate Mode
****************************************************************************
 1: KLASSIK RADIO     (0xd75b)  Prm   6   54 (192-245)  eep-3a  72 Kb/s DAB+
 2: SUNSHINE LIVE     (0x15dc)  Prm  21   54 (330-383)  eep-3a  72 Kb/s DAB+
 3: radio horeb       (0xd01c)  Prm   5   36 (156-191)  eep-3a  48 Kb/s DAB+
 4: ERF Plus          (0x1a64)  Prm   2   48 (  0- 47)  eep-3a  64 Kb/s DAB+
 5: Dlf               (0xd210)  Prm  10  104 (480-583)  eep-2a 104 Kb/s DAB+
 6: Dlf Kultur        (0xd220)  Prm  11  112 (584-695)  eep-2a 112 Kb/s DAB+
 7: Dlf Nova          (0xd230)  Prm  12  104 (696-799)  eep-2a 104 Kb/s DAB+
 8: DRadio DokDeb     (0xd240)  Prm  13   36 (800-835)  eep-3a  48 Kb/s DAB+
 9: Schwarzwaldradio  (0x100d)  Prm   7   42 (246-287)  eep-2b  64 Kb/s DAB+
10: ENERGY            (0x1a45)  Prm   4   54 (102-155)  eep-3a  72 Kb/s DAB+
11: SCHLAGERPARADIES  (0x10c3)  Prm  20   42 (288-329)  eep-2b  64 Kb/s DAB+
12: Absolut relax     (0x17fa)  Prm   3   54 ( 48-101)  eep-3a  72 Kb/s DAB+
13: RADIO BOB!        (0x15dd)  Prm  22   54 (384-437)  eep-3a  72 Kb/s DAB+
Free CUs on this multiplex =  70
root@dm920:~# Ensemble: DR Deutschland   (0x10bc)

----------------------------------------------------------------------------------------------------------------------------------------------

2.BuMux 12168 V 27500 pid 4122 port 5010 c:15101A reference 1:0:2:101A:C98:3:EB0000:0:0:0
wget http://localhost:8001/1:0:2:101A:C98:3:EB0000:0:0:0 -q -O- |fedi2eti 4122 239.128.72.10 50010 |ni2out --list

es.: ROCK ANTENNE
http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x121b

Code:

Ensemble: Antenne DE       (0x11f7)
****************************************************************************
 #  Programme Label   Serv.Id.  P/S SubCh Capac.Units   Prot.   Bitrate Mode
****************************************************************************
 1: Brillux Radio     (0x1299)  Prm  15   54 (648-701)  eep-3a  72 Kb/s DAB+
 2: Absolut GERMANY   (0x121c)  Prm  18   54 (810-863)  eep-3a  72 Kb/s DAB+
 3: AIDAradio         (0x1259)  Prm  17   54 (756-809)  eep-3a  72 Kb/s DAB+
 4: 90s90s            (0x12e9)  Prm  16   54 (702-755)  eep-3a  72 Kb/s DAB+
 5: Beats Radio       (0x1258)  Prm  14   54 (594-647)  eep-3a  72 Kb/s DAB+
 6: BALLERMANN RADIO  (0x12c8)  Prm  11   54 (432-485)  eep-3a  72 Kb/s DAB+
 7: NOSTALGIE         (0x122a)  Prm  13   54 (540-593)  eep-3a  72 Kb/s DAB+
 8: 80s80s            (0x1057)  Prm  12   54 (486-539)  eep-3a  72 Kb/s DAB+
 9: TOGGO Radio       (0x1298)  Prm   5   54 (162-215)  eep-3a  72 Kb/s DAB+
10: RTL RADIO         (0x1229)  Prm   4   54 (108-161)  eep-3a  72 Kb/s DAB+
11: OLDIE ANTENNE     (0x121d)  Prm   2   54 ( 54-107)  eep-3a  72 Kb/s DAB+
12: ROCK ANTENNE      (0x121b)  Prm   1   54 (  0- 53)  eep-3a  72 Kb/s DAB+
13: Absolut OLDIE     (0x121a)  Prm  10   54 (378-431)  eep-3a  72 Kb/s DAB+
14: Absolut BELLA     (0x1219)  Prm   9   54 (324-377)  eep-3a  72 Kb/s DAB+
15: Absolut HOT       (0xdc1a)  Prm   7   54 (216-269)  eep-3a  72 Kb/s DAB+
16: Absolut TOP       (0x1218)  Prm   8   54 (270-323)  eep-3a  72 Kb/s DAB+
Free CUs on this multiplex =   0
root@dm920:~#

maumixio · Sep 21, 2024

Astra 23.5 i DAB+ freq 12168 V 27500 3/4 DATA : 1.BuMux and 2.BuMux

bouquets :

Code:

#NAME 1.BuMux
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x1a45:ENERGY
#DESCRIPTION ENERGY
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x100d:Schwarzwaldradio
#DESCRIPTION Schwarzwaldradio
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x10c3:SCHLAGERPARADIES
#DESCRIPTION SCHLAGERPARADIES
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x17fa:Absolut relax
#DESCRIPTION Absolut relax
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x15dd:RADIO BOB!
#DESCRIPTION RADIO BOB!
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd75b:KLASSIK RADIO
#DESCRIPTION KLASSIK RADIO
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x15dc:SUNSHINE LIVE
#DESCRIPTION SUNSHINE LIVE
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd01c:radio horeb
#DESCRIPTION radio horeb
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0x1a64:ERF Plus
#DESCRIPTION ERF Plus
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd220:Dlf kultur
#DESCRIPTION Dlf kultur
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd230:Dlf nova
#DESCRIPTION Dlf nova
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd240:DRadio DokDeb
#DESCRIPTION DRadio DokDeb
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:1:1019:C98:3:EB0000:0:0:0/4121/239.128.43.43/50043/0xd210:Dlf
#DESCRIPTION Dlf

and...

Code:

#NAME 2.BuMux
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x121b :ROCK ANTENNE
#DESCRIPTION ROCK ANTENNE
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1299:Brillux Radio
#DESCRIPTION Brillux Radio
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x121c:Absolut GERMANY
#DESCRIPTION Absolut GERMANY
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1259:AIDAradio
#DESCRIPTION AIDAradio
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x12c8:90s90s
#DESCRIPTION 90s90s
#SERVICE 4097:0:1:0:0:0:0:0:0:0: http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1258:Beats Radio
#DESCRIPTION Beats Radio
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x12c8:BALLERMANN RADIO
#DESCRIPTION BALLERMANN RADIO
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x122a:NOSTALGIE
#DESCRIPTION NOSTALGIE
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1298:TOGGO Radio
#DESCRIPTION TOGGO Radio
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1229:RTL RADIO
#DESCRIPTION RTL RADIO
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x121d:OLDIE ANTENNE
#DESCRIPTION OLDIE ANTENNE
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x121a:Absolut OLDIE
#DESCRIPTION Absolut OLDIE
#SERVICE 4097:0:1:0:0:0:0:0:0:0: http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1219:Absolut BELLA
#DESCRIPTION Absolut BELLA
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0xdc1a:Absolut HOT
#DESCRIPTION Absolut HOT
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1218:Absolut TOP
#DESCRIPTION Absolut TOP
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:101A:C98:3:EB0000:0:0:0/4122/239.128.72.10/50010/0x1057:80s80s
#DESCRIPTION 80s80s

maumixio · Sep 26, 2024

BFBS on Eutelsat 10B (10°E) 11221 V 3000 5/6 QPSK DATA: Salisbury EDI A

Code:

wget http://localhost:8001/1:0:2:21FD:1:10:640000:0:0:0 -q -O- |fedi2eti 701 239.232.1.201 2048 |ni2out --list

example Angel Vintage:

Code:

http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xcdc2 Angel Vintage

full list:

Code:

Ensemble: Salisbury (0xc1d8)
****************************************************************************
 #  Programme Label   Serv.Id.  P/S SubCh Capac.Units   Prot.   Bitrate Mode
****************************************************************************
 1:    Angel Vintage  (0xcdc2)  Prm   5   24 (108-131)  eep-3a  32 Kb/s DAB+
 2: BFBS BestBritish  (0xc9c4)  Prm  13   24 (352-375)  eep-3a  32 Kb/s DAB+
 3:        BFBS Edge  (0xc4f1)  Prm   4   24 ( 84-107)  eep-3a  32 Kb/s DAB+
 4:      BFBS Gurkha  (0xc2fc)  Prm   3   24 ( 60- 83)  eep-3a  32 Kb/s DAB+
 5:      BFBS Rewind  (0xc9c5)  Prm  18   24 (436-459)  eep-3a  32 Kb/s DAB+
 6:   OUTREACH RADIO  (0xc3ee)  Prm   8   24 (226-249)  eep-3a  32 Kb/s DAB+
 7: AspenWaite Radio  (0xccea)  Prm  12   18 (334-351)  eep-3a  24 Kb/s DAB+
 8:       BFBS Beats  (0xced6)  Prm   2   24 ( 36- 59)  eep-3a  32 Kb/s DAB+
 9:   BFBS Salisbury  (0xc991)  Prm   1   36 (  0- 35)  eep-3a  48 Kb/s DAB+
10:       Easy Radio  (0xcbf2)  Prm  19   36 (460-495)  eep-3a  48 Kb/s DAB+
11:  Grt Hits S'bury  (0xc5f4)  Prm   7   58 (168-225)  uep-3   80 Kb/s DAB
12:       Nation 60s  (0xccf1)  Prm  20   24 (496-519)  eep-3a  32 Kb/s DAB+
13:       Nation 00s  (0xc2fd)  Prm  14   36 (376-411)  eep-3a  48 Kb/s DAB+
14:     Nation Dance  (0xc2e7)  Prm  22   36 (556-591)  eep-3a  48 Kb/s DAB+
15:      Nation Love  (0xc2ec)  Prm  23   36 (592-627)  eep-3a  48 Kb/s DAB+
16:     Nation Rocks  (0xc2fb)  Prm  21   36 (520-555)  eep-3a  48 Kb/s DAB+
17:   OUTREACH DANCE  (0xc1c5)  Prm  26   24 (676-699)  eep-3a  32 Kb/s DAB+
18:  Salisbury Radio  (0xc2c1)  Prm   6   36 (132-167)  eep-3a  48 Kb/s DAB+
19:  BBC Radio Wilts  (0xcc32)  Prm  24   48 (628-675)  eep-3a  64 Kb/s DAB+
20:     Nation Radio  (0xc485)  Prm  11   84 (250-333)  uep-3  112 Kb/s DAB
21:       Nation 80s  (0xc2ef)  Prm  16   24 (412-435)  eep-3a  32 Kb/s DAB+
Free CUs on this multiplex = 164
root@dm920:~#

and bouquet ready made:

Code:

#NAME BFBS
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xcdc2:Angel Vintage
#DESCRIPTION Angel Vintage
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xccea:AspenWaite Radio
#DESCRIPTION AspenWaite Radio
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xcc32:BBC Radio Wilts
#DESCRIPTION BBC Radio Wilts
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xced6:BFBS Beats
#DESCRIPTION BFBS Beats
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc9c4:BFBS BestBritish
#DESCRIPTION BFBS BestBritish
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc4f1:BFBS Edge
#DESCRIPTION BFBS Edge
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2fc:BFBS Gurkha
#DESCRIPTION BFBS Gurkha
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc9c5:BFBS Rewind
#DESCRIPTION BFBS Rewind
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc991:BFBS Salisbury
#DESCRIPTION BFBS Salisbury
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xcbf2:Easy Radio
#DESCRIPTION Easy Radio
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc5f4:Grt Hits S'bury
#DESCRIPTION Grt Hits S'bury
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2fd:Nation 00s
#DESCRIPTION Nation 00s
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xccf1:Nation 60s
#DESCRIPTION Nation 60s
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2ef:Nation 80s
#DESCRIPTION Nation 80s
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2e7:Nation Dance
#DESCRIPTION Nation Dance
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2ec:Nation Love
#DESCRIPTION Nation Love
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc485:Nation Radio
#DESCRIPTION Nation Radio
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2fb:Nation Rock
#DESCRIPTION Nation Rock
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc1c5:OUTREACH DANCE
#DESCRIPTION OUTREACH DANCE
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc3ee:OUTREACH RADIO
#DESCRIPTION OUTREACH RADIO
#SERVICE 4097:0:2:1:0:0:0:0:0:0:http://localhost:5237/fedi2eti/1:0:2:21FD:1:10:640000:0:0:0/701/239.232.1.201/2048/0xc2c1:Salisbury Radio
#DESCRIPTION Salisbury Radio

maumixio · Sep 29, 2024

D1 NATL Eutelsat 9°E 12092 H 27500

Code:

wget http://127.0.0.1:8001/1:0:1:48D:1AF4:9E:5A0000:0:0:0 -q -O- | ts2na -p 1062 -s 12 |na2ni | ni2out --list

Example Absolute Radio

Code:

http://localhost:5237/ts2na/1:0:1:1:1AF4:9E:5A0000:0:0:0/1062/12/0xc1c0 Absolute Radio

Code:

Ensemble: D1 National      (0xc181)
****************************************************************************
 #  Programme Label   Serv.Id.  P/S SubCh Capac.Units   Prot.   Bitrate Mode
****************************************************************************
 1: talkSPORT         (0xc0c0)  Prm   2   48 (  0- 47)  uep-3   64 Kb/s DAB
 2: LBC               (0xc0c2)  Prm  15   48 ( 48- 95)  uep-3   64 Kb/s DAB
 3: Absolute Radio    (0xc1c0)  Prm   3   58 ( 96-153)  uep-3   80 Kb/s DAB
 4: KISS              (0xc5c0)  Prm  10   58 (154-211)  uep-3   80 Kb/s DAB
 5: Magic             (0xc0c6)  Prm  11   58 (212-269)  uep-3   80 Kb/s DAB
 6: KISSTORY          (0xcfe6)  Prm  13   58 (270-327)  uep-3   80 Kb/s DAB
 7: Heart UK          (0xcfd1)  Prm   5   30 (328-357)  eep-3a  40 Kb/s DAB+
 8: Smooth UK         (0xc6c0)  Prm   6   30 (358-387)  eep-3a  40 Kb/s DAB+
 9: Gold Radio UK     (0xcee8)  Prm   8   30 (388-417)  eep-3a  40 Kb/s DAB+
10: Heart Dance       (0xcfe8)  Prm   4   24 (418-441)  eep-3a  32 Kb/s DAB+
11: Heart  80s        (0xc1dc)  Prm  14   24 (442-465)  eep-3a  32 Kb/s DAB+
12: Heart  90s        (0xcbe9)  Prm  18   24 (466-489)  eep-3a  32 Kb/s DAB+
13: Capital XTRA      (0xc37b)  Prm  16   30 (490-519)  eep-3a  40 Kb/s DAB+
14: Heart  70s        (0xcae9)  Prm  19   24 (520-543)  eep-3a  32 Kb/s DAB+
15: Radio X           (0xc4cd)  Prm  17   30 (544-573)  eep-3a  40 Kb/s DAB+
16: LBC News          (0xc8ea)  Prm  21   24 (574-597)  eep-3a  32 Kb/s DAB+
17: Capital UK        (0xc5da)  Prm  22   30 (598-627)  eep-3a  40 Kb/s DAB+
18: Smooth Chill      (0xc9eb)  Prm  12   24 (628-651)  eep-3a  32 Kb/s DAB+
19: Capital DANCE     (0xc9ed)  Prm  23   30 (652-681)  eep-3a  40 Kb/s DAB+
20: UCB 1             (0xc4ca)  Prm   7   18 (682-699)  eep-3a  24 Kb/s DAB+
21: GB News Radio     (0xc4f0)  Prm  24   18 (700-717)  eep-3a  24 Kb/s DAB+
22: UCB 2             (0xcbd8)  Prm   9   24 (718-741)  eep-3a  32 Kb/s DAB+
23: Heart 00s         (0xc9f3)  Prm  20   24 (742-765)  eep-3a  32 Kb/s DAB+
24: Classic FM        (0xc2a1)  Prm  28   48 (766-813)  eep-3a  64 Kb/s DAB+
25: Smooth Relax      (0xc4fb)  Prm  27   24 (814-837)  eep-3a  32 Kb/s DAB+
26: Heart Xmas        (0xc4ed)  Prm  25   24 (838-861)  eep-3a  32 Kb/s DAB+
Free CUs on this multiplex =   2
root@dm920:~#

and bouquet:

Code:

#NAME D1 National
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc1c0:Absolute Radio
#DESCRIPTION Absolute Radio
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc9ed:Capital DANCE
#DESCRIPTION Capital DANCE
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc5da:Capital UK
#DESCRIPTION Capital UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/tsniv2ni/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc37b:Capital XTRA
#DESCRIPTION Capital XTRA
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc2a1:Classic FM
#DESCRIPTION Classic FM
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc4f0:GB News Radio
#DESCRIPTION GB News Radio
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcee8:Gold UK
#DESCRIPTION Gold UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc9f3:Heart 00s
#DESCRIPTION Heart 00s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcae9:Heart 70s
#DESCRIPTION Heart 70s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc1dc:Heart 80s
#DESCRIPTION Heart 80s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcbe9:Heart 90s
#DESCRIPTION Heart 90s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcfe8:Heart Dance
#DESCRIPTION Heart Dance
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcfd1:Heart UK
#DESCRIPTION Heart UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc5c0:KISS
#DESCRIPTION KISS
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcfe6:KISSTORY
#DESCRIPTION KISSTORY
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc0c2:LBC
#DESCRIPTION LBC
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc8ea:LBC News
#DESCRIPTION LBC News
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc0c6:Magic
#DESCRIPTION Magic
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc4cd:Radio X
#DESCRIPTION Radio X
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc9eb:Smooth Chill
#DESCRIPTION Smooth Chill
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc4fn:Smooth Relax
#DESCRIPTION Smooth Relax
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc6c0:Smooth UK
#DESCRIPTION Smooth UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc0c0:talkSPORT
#DESCRIPTION talkSPORT
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc4ca:UCB 1
#DESCRIPTION UCB 1
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xcbd8:UCB 2
#DESCRIPTION UCB 2
#SERVICE 4097:0:1:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc4ed:Heart Xmas
#DESCRIPTION Heart Xmas

maumixio · Sep 29, 2024

SDL NATL Eutelsat 9°E 12092 H 27500

Code:

wget http://127.0.0.1:8001/1:0:1:492:1AF4:9E:5A0000:0:0:0: -q -O- | ts2na -p 1063 -s 12 |na2ni | ni2out --list

Example Virgin Radio

Code:

http://localhost:5237/ts2na/1:0:1:2:1AF4:9E:5A0000:0:0:0:/1063/12/0xc3d8 Virgin Radio

Code:

Ensemble: SDL National     (0xc1ce)
****************************************************************************
 #  Programme Label   Serv.Id.  P/S SubCh Capac.Units   Prot.   Bitrate Mode
****************************************************************************
 1: Virgin Radio      (0xc3d8)  Prm   3   58 (  0- 57)  uep-3   80 Kb/s DAB
 2: Times Radio       (0xc0d8)  Prm   6   48 ( 58-105)  uep-3   64 Kb/s DAB
 3: Sunrise Radio UK  (0xc9d8)  Prm   9   42 (106-147)  uep-3   56 Kb/s DAB
 4: PremierChristian  (0xccd8)  Prm  12   48 (148-195)  uep-3   64 Kb/s DAB
 5: Premier Praise    (0xcdd8)  Prm  13   48 (196-243)  uep-3   64 Kb/s DAB
 6: Jazz FM Stereo    (0xcad7)  Prm  17   24 (244-267)  eep-3a  32 Kb/s DAB+
 7: BFBS UK           (0xc5e0)  Prm  20   18 (268-285)  eep-3a  24 Kb/s DAB+
 8: Virgin Anthems    (0xc7e6)  Prm  24   24 (286-309)  eep-3a  32 Kb/s DAB+
 9: Virgin Chilled    (0xc8e6)  Prm  25   24 (310-333)  eep-3a  32 Kb/s DAB+
10: Talk              (0xcaeb)  Prm  26   24 (334-357)  eep-3a  32 Kb/s DAB+
11: talkSPORT 2       (0xc1d8)  Prm  27   24 (358-381)  eep-3a  32 Kb/s DAB+
12: Boom Radio UK     (0xc5ef)  Prm  10   18 (382-399)  eep-3a  24 Kb/s DAB+
13: Fix Radio         (0xcdda)  Prm  15   48 (400-447)  uep-3   64 Kb/s DAB
14: CapXTRA Reloaded  (0xcce9)  Prm  28   24 (448-471)  eep-3a  32 Kb/s DAB+
15: Radio X Class Rk  (0xc5f6)  Prm   2   24 (472-495)  eep-3a  32 Kb/s DAB+
16: Magic Musicals    (0xcaea)  Prm  29   24 (496-519)  eep-3a  32 Kb/s DAB+
17: HITS RADIO  CHIL  (0xcee6)  Prm  30   24 (520-543)  eep-3a  32 Kb/s DAB+
18: Kerrang!          (0xc6cf)  Prm  31   24 (544-567)  eep-3a  32 Kb/s DAB+
19: Absolute Country  (0xcce7)  Prm  33   24 (568-591)  eep-3a  32 Kb/s DAB+
20: Absolute Rock St  (0xc7c9)  Prm  34   24 (592-615)  eep-3a  32 Kb/s DAB+
21: Magic Soul        (0xc3d9)  Prm  35   24 (616-639)  eep-3a  32 Kb/s DAB+
22: Absolute 80s St   (0xc8d8)  Prm   8   24 (640-663)  eep-3a  32 Kb/s DAB+
23: Absolute 90s St   (0xcac2)  Prm  21   24 (664-687)  eep-3a  32 Kb/s DAB+
24: Mellow Magic St   (0xc5d8)  Prm   4   24 (688-711)  eep-3a  32 Kb/s DAB+
25: Planet Rock St    (0xc7d8)  Prm   7   24 (712-735)  eep-3a  32 Kb/s DAB+
26: Magic Classical   (0xcde6)  Prm  22   24 (736-759)  eep-3a  32 Kb/s DAB+
27: Capital Anthems   (0xcafc)  Prm  39   24 (760-783)  eep-3a  32 Kb/s DAB+
28: Smooth 80s        (0xcafb)  Prm  38   24 (784-807)  eep-3a  32 Kb/s DAB+
29: KISSTORY R&B      (0xcff9)  Prm  40   24 (808-831)  eep-3a  32 Kb/s DAB+
30: Grt Hits Rad 60s  (0xcffa)  Prm  41   24 (832-855)  eep-3a  32 Kb/s DAB+
Free CUs on this multiplex =   8
root@dm920:~#

and here the bouquet:

Code:

#NAME SDL National
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc7c9:Absolute Rock St
#DESCRIPTION Absolute Rock St
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc8d8:Absolute 80s
#DESCRIPTION Absolute 80s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcac2:Absolute 90s
#DESCRIPTION Absolute 90s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xccce7:Absolute Country
#DESCRIPTION Absolute Country
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc5e0:BFBS UK
#DESCRIPTION BFBS UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc5ef:Boom Radio UK
#DESCRIPTION Boom Radio UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc4fc:Capital Anthems
#DESCRIPTION Capital Anthems
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcce9:CapXTRA Reloaded
#DESCRIPTION CapXTRA Reloaded
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcdda:Fix Radio
#DESCRIPTION Fix Radio
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcffa:Grt Hits Rad 60s
#DESCRIPTION Grt Hits Rad 60s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcee6:HITS RADIO CHIL
#DESCRIPTION HITS RADIO CHIL
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcad7:Jazz FM Stereo
#DESCRIPTION Jazz FM Stereo
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc6cf:Kerrang!
#DESCRIPTION Kerrang!
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcff9:KISSTORY R&B
#DESCRIPTION KISSTORY R&B
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcde6:Magic Classical
#DESCRIPTION Magic Classical
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcaea:Magic Musicals
#DESCRIPTION Magic Musicals
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc3d9 :Magic Soul
#DESCRIPTION Magic Soul
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc5d8:Mellow Magic
#DESCRIPTION Mellow Magic
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc7d8:Planete Rock
#DESCRIPTION Planete Rock
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcdd8:Premiere Praise
#DESCRIPTION Premiere Praise
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xccd8:PremiereChristian
#DESCRIPTION PremiereChristian
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc5f6:Radio X Class Rk
#DESCRIPTION Radio X Class Rk
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcafb:Smooth 80s
#DESCRIPTION Smooth 80s
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc9d8:Sunrise Radio UK
#DESCRIPTION Sunrise Radio UK
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xcaeb:Talk
#DESCRIPTION Talk
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc1d8:talkSPORT 2
#DESCRIPTION talkSPORT 2
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc0d8:Times Radio
#DESCRIPTION Times Radio
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc7e6:Virgin Anthems
#DESCRIPTION Virgin Anthems
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc8e6:Virgin Chilled
#DESCRIPTION Virgin Chilled
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:1:492:1AF4:9E:5A0000:0:0:0:/1063/12/0xc3d8:Virgin Radio
#DESCRIPTION Virgin Radio

Francescone · Sep 30, 2024

If I understand correctly, I believe that once the image is configured, making copy/paste of the "bouquet" lines into a text file could be enough.
But can you explain in which text file I must copy all this content, and where I must place the resulting file? Thanks.

maumixio · Sep 30, 2024

in etc/enigma2 you have bouquets.tv you must write a line inside i.e.:

Code:

#SERVICE 1:7:1:0:0:0:0:0:0:0:FROM BOUQUET "userbouquet.d1_national.tv" ORDER BY bouquet

and of course the file "userbouquet.d1_national.tv" with copyed text see post #34

Code:

#NAME D1 National
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc1c0:Absolute Radio
#DESCRIPTION Absolute Radio
#SERVICE 4097:0:2:0:0:0:0:0:0:0:http://localhost:5237/ts2na/1:0:2:48D:1AF4:9E:5A0000:0:0:0/1062/12/0xc9ed:Capital DANCE
#DESCRIPTION Capital DANCE
and so on ....

easy? but satisfaction is not to keep a ready made list but to get each single channel and write down corrispondence to do that I used Dreamboxedit program to create my own list

Francescone · Oct 1, 2024

OK, now the process is a little bit clearer to me.
Do you know if Dreamset can be used instead of Dreamboxedit?
I always used Dreamset to organize my settings, so I would prefer to continue using that program if possible. Thanks.

maumixio · Oct 1, 2024

I always use Dreamset but in this case I'm familiar with Dreamboxedit to add new IPTV service and Dreamset also can do that right click on bouquet channel list and select "insert Video/Audio stream..."

maumixio · Oct 1, 2024

maumixio said:
first of all check in usr/lib latest file libavcodec.so.60.3.100 just in case here is rar file unpack and replace with FTP and give attributes 755, reboot. If you have all channels in one bouquet (i.e. D1 National) let me know

latest codec here

DAB+ radio on sat for Enigma2 Linux decoders

Victor64

EnoSat

Well Known Member

keyhole

Victor64

keyhole

Victor64

keyhole

Victor64

Francescone

Well Known Member

EnoSat

Well Known Member

Satellite sources of DAB feeds - part 4 · Issue #55 · piratfm/eti-tools

maumixio

maumixio

maumixio

maumixio

maumixio

Francescone

Well Known Member

maumixio

Francescone

Well Known Member

maumixio

maumixio

Attachments
